Unfiltered power entry module featuring a 3-position, 1-pole configuration for AC applications. Rated for 250VAC and 10A, it includes a fuse holder for 5 × 20 mm fuses. This module offers quick connect termination and panel mounting with flanges and screws. Constructed with tin-plated contacts, it operates within a temperature range of -25°C to 70°C and boasts a UL94 V-0 flammability rating.
FrequencyN/A
PackageModule
Current10A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter 6200.2300 technical specifications.
General
Application(s)
AC
Package/Case
Module
Contact Plating
Tin
Current
10A
Current Rating
10A
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 × 20 mm
Gender
Male
Lead Free
Lead Free
Length
34mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
1
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
6200
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.423288oz
Width
44mm
Compliance
RoHS
Compliant
Datasheet
Schurter 6200.2300 Datasheet
Download the complete datasheet for Schurter 6200.2300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

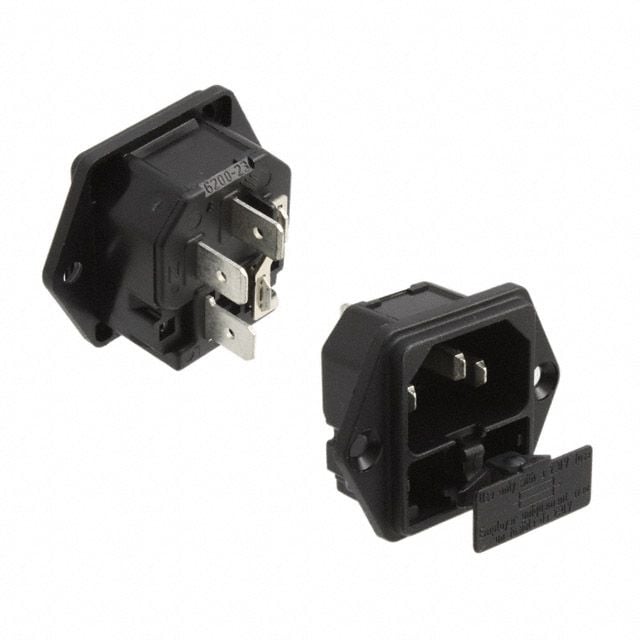

Product Images
