Illuminated fuse holder for 5x20mm fuses, featuring a thermoplastic black body and bronze, tin-plated contacts. Rated for 7A and 125V AC/DC, this single-pole, single-circuit component mounts via through-hole PCB termination. Operating temperature range is -40°C to 85°C, with lead-free and RoHS compliant construction.
Voltage125V
Voltage Rating125V
Current Rating7A
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Schurter 7090.9020.03 technical specifications.
General
Body Material
Thermoplastic
Color
Black
Contact Material
Bronze, Tin
Contact Plating
Tin
Current Rating
7A
Fuse Size
0.079 Dia x 0.276 L (2mm x 7mm)
Illumination Type
Illuminated
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole, PCB
Number of Circuits
1
Number of Poles
1
Orientation
Horizontal
Package Quantity
100
Packaging
Bag
RoHS Compliant
Yes
Series
231787
Termination
PC Pin
Voltage
125V
Voltage Rating
125V
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
0.088185oz
Compliance
RoHS
Compliant
Datasheet
Schurter 7090.9020.03 Datasheet
Download the complete datasheet for Schurter 7090.9020.03 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

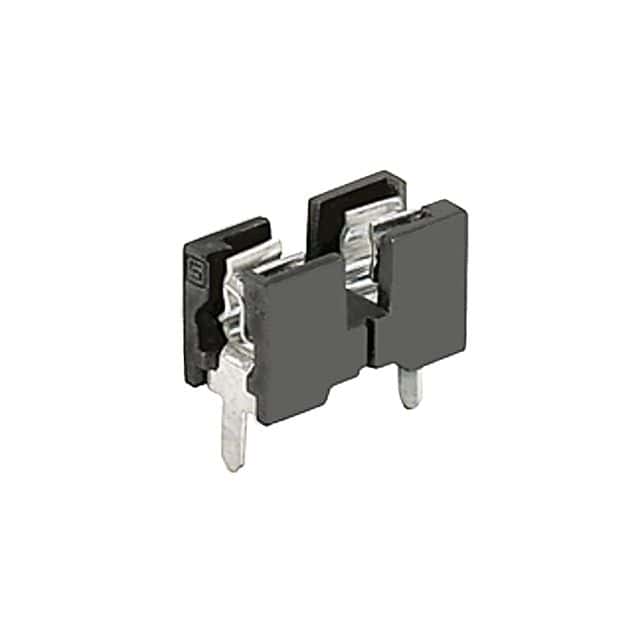

Product Images
