Package0606
Voltage Rating250V
Current Rating25A
MountingThrough Hole
Quick Jump:
Technical Specifications
Schurter 8020.0606.PT technical specifications.
General
Approvals
cURus, cULus
Body Material
Ceramic
Package/Case
0606
Contact Plating
Tin
Current Rating
25A
DC Cold Resistance
2.1mR
Diameter
6.3mm
Fuse Current
25A
Length
1.291inch
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SUT 6.3x32
Termination
Axial
Voltage Rating
250V
Voltage Rating (AC)
250V
Weight
0.105822oz
Compliance
RoHS
Compliant
Datasheet
Schurter 8020.0606.PT Datasheet
Download the complete datasheet for Schurter 8020.0606.PT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

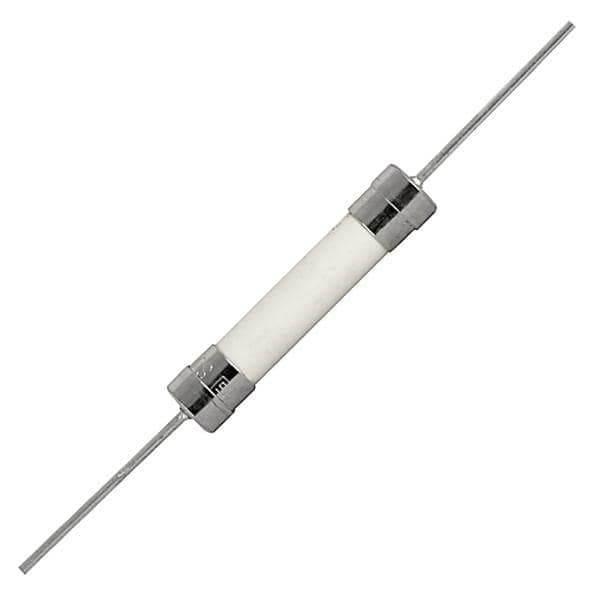

Product Images
