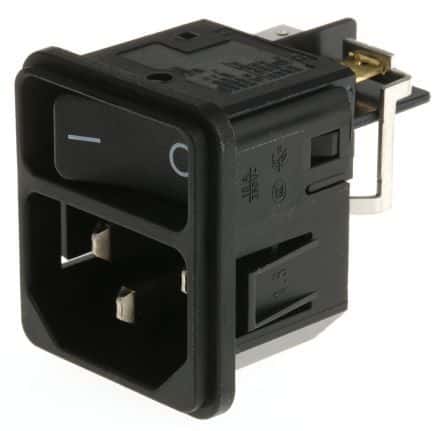

Unfiltered power entry module featuring a 3-position, 1-pole, SPST switch. Rated for 250VAC and 12A, this module offers quick connect termination and a straight orientation. Designed for panel snap-in mounting, it operates within a temperature range of -25°C to 70°C and boasts a UL94 V-0 flammability rating. The module is RoHS compliant and IP40 rated.
FrequencyN/A
PackageModule
Voltage250V
Current12A
Quick Jump:
Technical Specifications
Schurter DC11.0001.203 technical specifications.
General
Package/Case
Module
Color
Black
Current
12A
Current Rating
12A
Filter Type
NONE
Flammability Rating
UL94 V-0
Fuse
No
Gender
Male
Lead Free
Lead Free
Max Current Rating
12A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Poles
1
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
DC11
Termination
Quick Connect
Throw Configuration
SPST
Type
Switch
Voltage
250V
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.58202oz
Compliance
RoHS
Compliant
Datasheet
Schurter DC11.0001.203 Datasheet
Download the complete datasheet for Schurter DC11.0001.203 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
