Filtered power entry module with 3 positions, rated for 250VAC and 4A. Features a built-in switch and fuse holder for 5 x 20mm fuses. Offers panel mounting with flanges and screws, and straight orientation with quick connect termination. Includes shielding, operates from -25°C to 85°C, and meets UL94 V-0 flammability rating.
FrequencyN/A
PackageModule
Current4A
Resistance1MR
Quick Jump:
Technical Specifications
Schurter DD12.4111.111 technical specifications.
General
Package/Case
Module
Current
4A
Current Rating
4A
Depth
60.9mm
Features
Shielded
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
5 x 20mm
Gender
Male
Height
31.5mm
Inductance
1.5mH
Max Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
Resistance
1MR
RoHS Compliant
Yes
Series
DD12
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
3oz
Width
66mm
Compliance
RoHS
Compliant
Datasheet
Schurter DD12.4111.111 Datasheet
Download the complete datasheet for Schurter DD12.4111.111 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

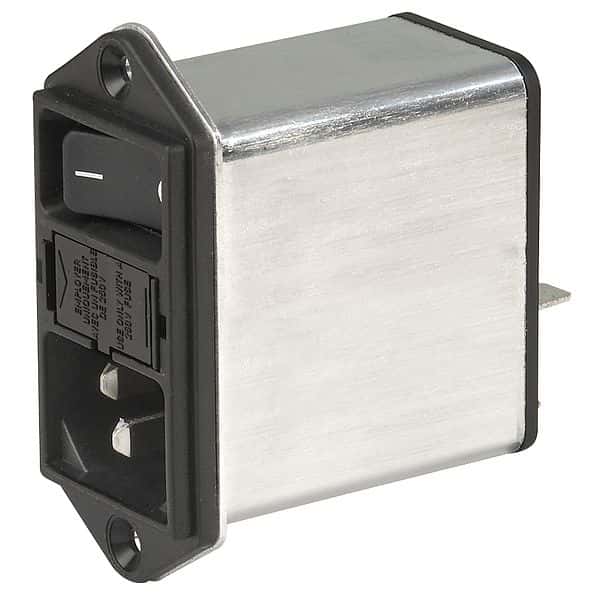

Product Images
