PackageNonstandard
MountingThrough Hole
Inductance200uH
Quick Jump:
Technical Specifications
Schurter DLFP-0132-45D2 technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Height
70.8mm
Inductance
200uH
Lead/Base Style
Lead Wire
Length
80mm
Max Current Rating
45A
Max DC Current
45A
Max Operating Temperature
100°C
Min Operating Temperature
-25°C
Mount
Through Hole
Number of Lines
2
Package Quantity
2
Packaging
Bulk
RoHS Compliant
Yes
Self Resonant Frequency
12MHz
Series
DLFP
Shielding
Shielded
Termination
Through Hole
Voltage Rating (AC)
440V
Weight
3.197lb
Width
80mm
Compliance
RoHS
Compliant
Datasheet
Schurter DLFP-0132-45D2 Datasheet
Download the complete datasheet for Schurter DLFP-0132-45D2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

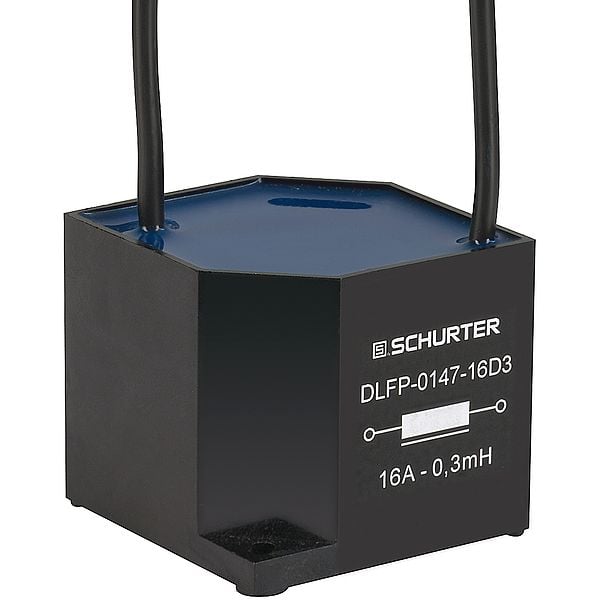

Product Images
