The FMAC-091D-5010 is a power line EMI filter designed for chassis mount applications. It operates within a temperature range of -25°C to 100°C and is rated for 480V AC at 50/60Hz. This filter is compliant with RoHS regulations and has an IP20 rating for protection against solid objects. It is available in a package quantity of 2 and is shipped in a box.
Frequency50|60 Hz
Current50A
Current Rating50A
MountingChassis Mount, Chassis, Flanges
Quick Jump:
Technical Specifications
Schurter FMAC-091D-5010 technical specifications.
General
| Current | 50A |
| Current Rating | 50A |
| Depth | 265mm |
| Height | 90mm |
| Inductance | 650uH |
| Length | 58mm |
| Max Current Rating | 50A |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Voltage Rating (AC) | 480V |
| Mount | Chassis Mount, Chassis, Flanges |
| Number of Conductors | 3 |
| Operating Frequency | 50|60 Hz |
| Package Quantity | 2 |
| Packaging | Box |
| Radiation Hardening | No |
| Ratings | IP20 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | FMAC ECO |
| Termination | Terminal Block |
| Voltage Rating (AC) | 480V |
| Weight | 0.054675oz |
Compliance
| RoHS | Compliant |
Datasheet
Schurter FMAC-091D-5010 Datasheet
Download the complete datasheet for Schurter FMAC-091D-5010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

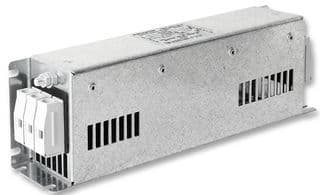

Product Images
