2-pole, 3-position power entry module with integrated fuse holder for 5x20mm and 6.3x32mm fuses. Features a 10A current rating, 250VAC voltage rating, and DPST switch. Designed for panel mounting with quick connect termination and a straight orientation. UL, CSA, VDE, and SEMKO approved, with UL94 V-0 flammability rating and IP40 protection.
Frequency50Hz
PackageModule
Current10A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter KD14.1101.151 technical specifications.
General
Application(s)
AC
Approvals
UL, CSA, VDE, SEMKO
Package/Case
Module
Color
Black
Contact Plating
Tin
Current
10A
Current Rating
10A
Depth
55mm
Flammability Rating
UL94 V-0
Frequency
50Hz
Fuse
Yes
Fuse Size
5 x 20 mm, 6.3 x 32 mm
Gender
Male
Lead Free
Lead Free
Length
83.5mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Flanges, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KD
Termination
Quick Connect
Throw Configuration
DPST
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
1.36863oz
Width
30mm
Compliance
RoHS
Compliant
Datasheet
Schurter KD14.1101.151 Datasheet
Download the complete datasheet for Schurter KD14.1101.151 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

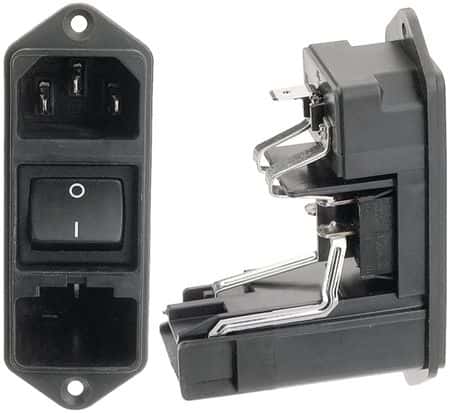

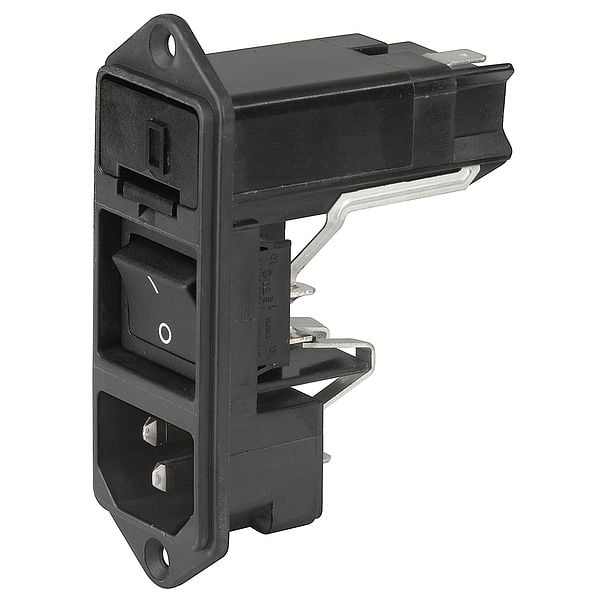

Product Images
