Filtered power entry module with a 3-position switch and dual 5x20mm fuse holders, rated for 250VAC and 4A. Features include 47nF capacitance, 800uH inductance, UL94 V-0 flammability, and IP40 protection. Designed for panel mounting with snap-in installation and quick connect termination, operating within a -25°C to 85°C temperature range.
FrequencyN/A
PackageModule
Current4A
Capacitance47nF
Quick Jump:
Technical Specifications
Schurter KMF1.1141.11 technical specifications.
General
Capacitance
47nF
Package/Case
Module
Current
4A
Current Rating
4A
Depth
42.9mm
Features
Shielded
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
Dual 5 x 20mm
Gender
Male
Height
50mm
Inductance
800uH
Lead Free
Lead Free
Max Current Rating
4A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Panel Thickness
2.5mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KMF
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
2.04589oz
Width
30.5mm
Compliance
RoHS
Compliant
Datasheet
Schurter KMF1.1141.11 Datasheet
Download the complete datasheet for Schurter KMF1.1141.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

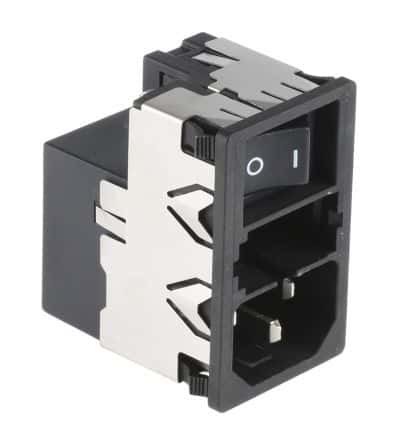

Product Images
