Filtered power entry module with 3 positions, rated for 250VAC and 6A. Features a standard filter type, dual 5x20mm fuse holders, and a single port. Constructed from UL94 V-0 rated thermoplastic, this module offers panel, snap-in, and screw mounting options with quick connect termination. Operating temperature range is -25°C to 85°C, with IP40 rating.
FrequencyN/A
PackageModule
Current6A
Voltage Rating250V
Quick Jump:
Technical Specifications
Schurter KMF1.1161.11 technical specifications.
General
Body Material
Thermoplastic
Package/Case
Module
Current
6A
Current Rating
6A
Depth
40.35mm
Features
Shielded
Filter Type
STANDARD
Flammability Rating
UL94 V-0
Fuse
Yes
Fuse Size
Dual 5 x 20mm
Gender
Male
Height
25.7mm
Lead Free
Lead Free
Length
50mm
Max Current Rating
6A
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
250V
Mount
Panel, Snap in, Screw
Number of Contacts
3
Number of Poles
2
Number of Ports
1
Number of Positions
3
Operating Frequency
N/A
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Panel Thickness
2.5mm
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
KMF
Termination
Quick Connect
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
2.04589oz
Width
30.5mm
Compliance
RoHS
Compliant
Datasheet
Schurter KMF1.1161.11 Datasheet
Download the complete datasheet for Schurter KMF1.1161.11 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

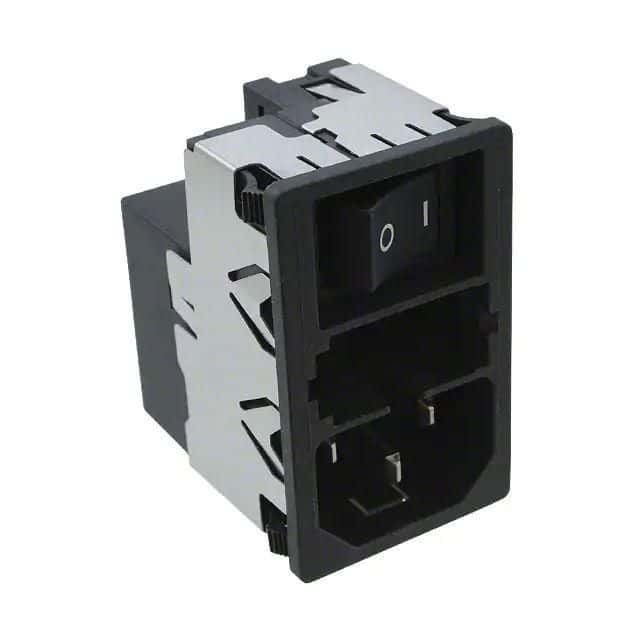

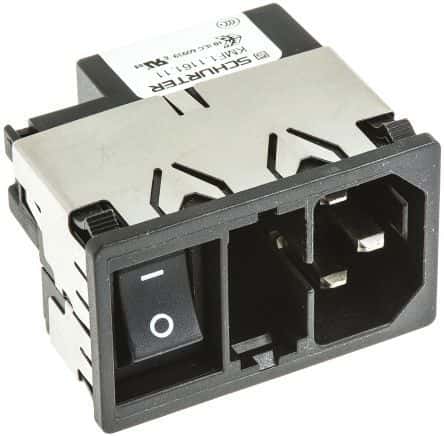

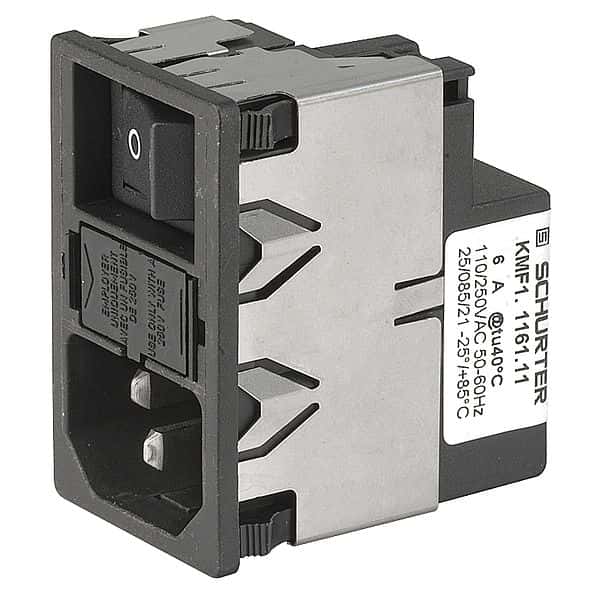

Product Images
