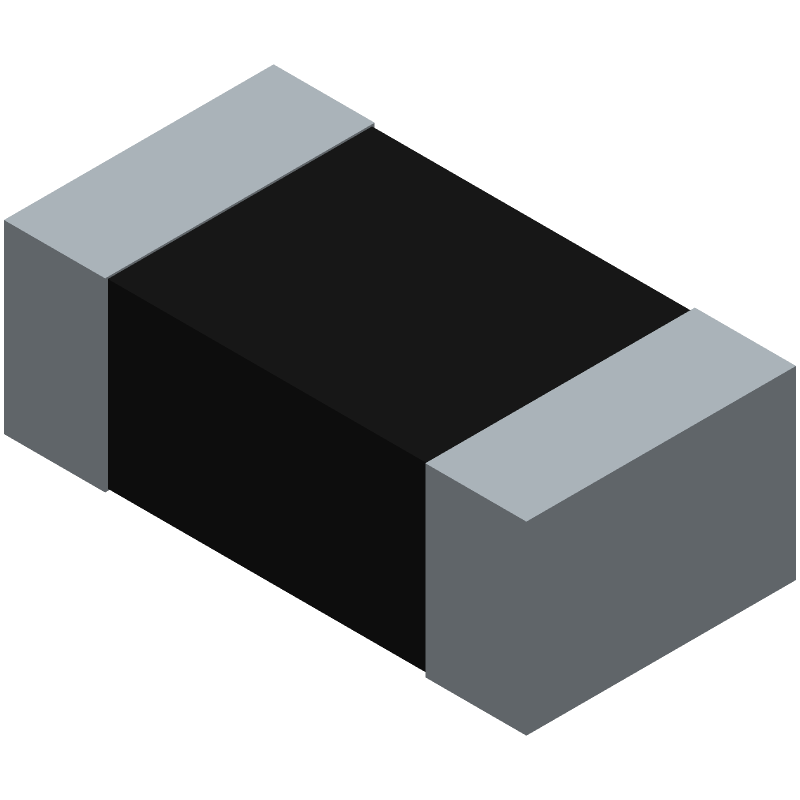

Surface mount fixed resistor, 1000 ohm resistance, 0.1W power rating, and 75V maximum voltage. Features a 1% tolerance and a temperature coefficient of 100ppm/°C. Operates across a wide temperature range from -55°C to 155°C. Packaged in a compact 0603 chip size with dimensions of 1.55mm length, 0.8mm width, and 0.45mm height.
Resistance1000
Quick Jump:
Technical Specifications
SEI Stackpole Electronics RMCF0603FT1K00 technical specifications.
General
Max Operating Temperature
155
Number of Terminals
2
Min Operating Temperature
-55
Package Length
1.55
Tolerance
1
Package Width
0.8
Package Height
0.45
Resistance
1000
Compliance
RoHS
Yes
Eccn Code
EAR99
Lead Free
Yes
HTS Code
8533.21.00.30
REACH
Compliant
Military Spec
False
Datasheet
SEI Stackpole Electronics RMCF0603FT1K00 Datasheet
Download the complete datasheet for SEI Stackpole Electronics RMCF0603FT1K00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
