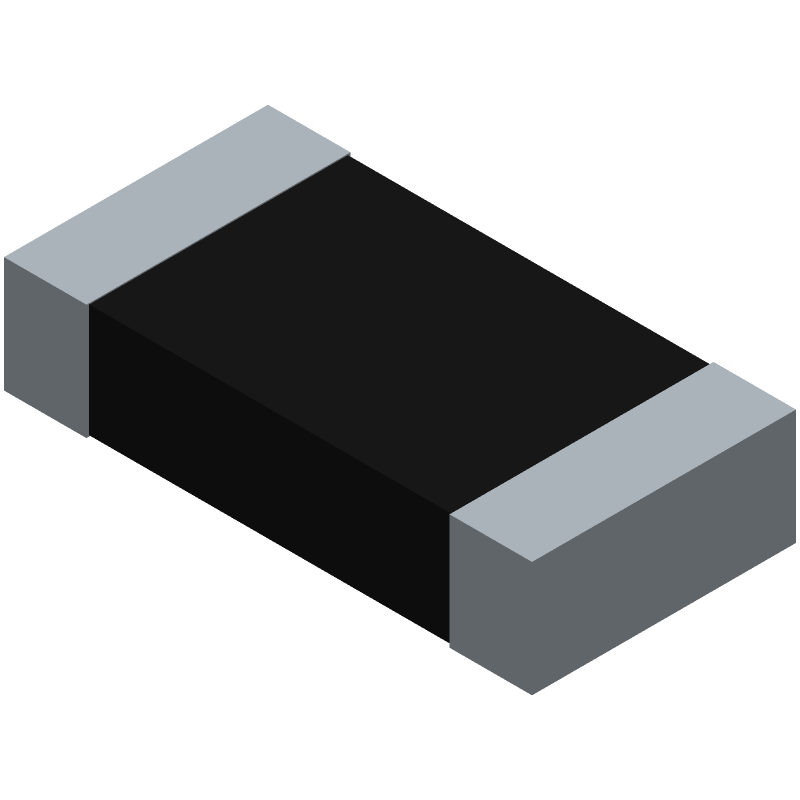

Surface mount chip resistor, 0 ohm resistance, metal glaze/thick film construction. Rated for 0.25W power dissipation. Operating temperature range from -55°C to 155°C. Features a 1206 package size with dimensions of 3.2mm length, 1.6mm width, and 0.55mm height. Two terminals for connection.
Resistance0
Quick Jump:
Technical Specifications
SEI Stackpole Electronics RMCF1206ZT0R00 technical specifications.
General
Max Operating Temperature
155
Number of Terminals
2
Min Operating Temperature
-55
Package Length
3.2
Package Width
1.6
Package Height
0.55
Resistance
0
Compliance
RoHS
Yes
Eccn Code
EAR99
Lead Free
Yes
HTS Code
8533.21.00.30
REACH
Compliant
Military Spec
False
Datasheet
SEI Stackpole Electronics RMCF1206ZT0R00 Datasheet
Download the complete datasheet for SEI Stackpole Electronics RMCF1206ZT0R00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
