PackageModule
MountingPanel, Screw
Quick Jump:
Technical Specifications
Semikron SKKH92/16E technical specifications.
General
Package/Case
Module
Height
30mm
Hold Current
250mA
Isolation Voltage
2.5kV
Length
93mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.6kV
Mount
Panel, Screw
Reach SVHC Compliant
No
RMS Current (Irms)
150A
RoHS Compliant
Yes
Width
20mm
Compliance
RoHS
Compliant
Datasheet
Semikron SKKH92/16E Datasheet
Download the complete datasheet for Semikron SKKH92/16E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

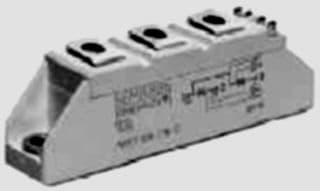

Product Images
