Technical Specifications
Semikron SKKT162/16E technical specifications.
General
Package/Case
Module
Height
30mm
Hold Current
400mA
Isolation Voltage
2.5kV
Length
94mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.6kV
Mount
Panel, Screw
Reach SVHC Compliant
No
RMS Current (Irms)
250A
RoHS Compliant
Yes
Termination
Screw
Width
34mm
Compliance
RoHS
Compliant
Datasheet
Semikron SKKT162/16E Datasheet
Download the complete datasheet for Semikron SKKT162/16E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

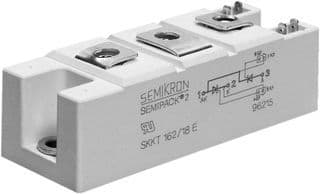

Product Images
