Technical Specifications
Semikron SKN26/12 technical specifications.
General
Forward Current
25A
Height
32mm
Length
12.7mm
Max Forward Surge Current (Ifsm)
375A
Max Operating Temperature
180°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Max Reverse Current
4mA
Mount
Stud
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
11mm
Compliance
RoHS
Compliant
Datasheet
Semikron SKN26/12 Datasheet
Download the complete datasheet for Semikron SKN26/12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

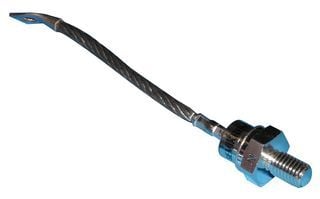

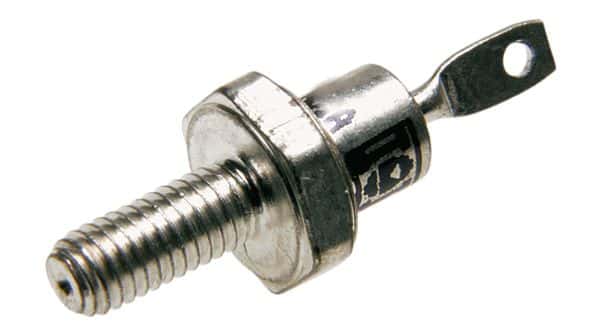

Product Images
