Bidirectional transient voltage suppressor diode offering 500W peak pulse power and 12V reverse standoff voltage. Features a 13.3V minimum breakdown voltage and 26.6V clamping voltage. This 2-element silicon device provides ESD protection with a low leakage current of 5µA. Designed for surface mount applications in a SOT-143 package, it operates across a temperature range of -55°C to 125°C. RoHS compliant and lead-free.
PackageSOT-143
Capacitance8pF
Voltage Rating12V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech LCDA12C-1.TCT technical specifications.
General
Capacitance
8pF
Package/Case
SOT-143
Clamping Voltage
26.6V
Clamping Voltage-Max
26.6V
Depth
1.4mm
Diode Type
ZENER
Direction
Unidirectional, Bidirectional
ESD Protection
Yes
Height
1.1mm
Lead Free
Lead Free
Leakage Current
5uA
Length
3.04mm
Max Breakdown Voltage
13.3V
Min Breakdown Voltage
13.3V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500W
Max Reverse Leakage Current
5uA
Mount
Surface Mount
Number of Channels
1
Number of Elements
2
Number of Unidirectional Channels
2
Operating Supply Voltage
12V
Packaging
Tape and Reel
Peak Pulse Current
20A
Peak Pulse Power
500W
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
13.3V
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
12V
Width
1.4mm
Working Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Semtech LCDA12C-1.TCT Datasheet
Download the complete datasheet for Semtech LCDA12C-1.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

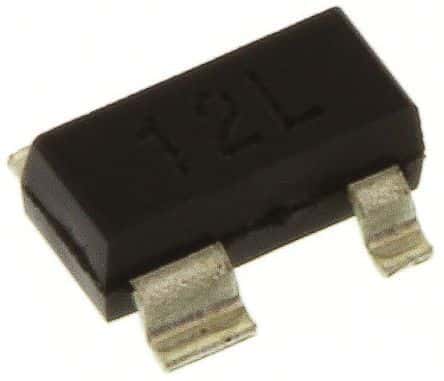

Product Images
