Unidirectional transient voltage suppressor diode offering 50W peak pulse power and 3A peak pulse current. Features a 5V reverse standoff voltage, 6V reverse breakdown voltage, and 18V clamping voltage. With a low 0.9pF capacitance and 1uA leakage current, this silicon component provides ESD protection and power line protection. Designed for surface mount applications in an SC package, it operates across a -55°C to 125°C temperature range.
PackageSC
Voltage5V
Current3A
Capacitance0.9pF
Quick Jump:
Technical Specifications
Semtech RCLAMP0502A.TCT technical specifications.
General
Capacitance
0.9pF
Package/Case
SC
Clamping Voltage
18V
Clamping Voltage-Max
18V
Current
3A
Direction
Unidirectional
ESD Protection
Yes
Height
0.6mm
Lead Free
Lead Free
Leakage Current
1uA
Length
1.6mm
Max Breakdown Voltage
6V
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
50W
Max Reverse Leakage Current
1uA
Mount
Surface Mount
Number of Channels
2
Number of Elements
1
Number of Unidirectional Channels
2
Packaging
Tape and Reel
Peak Pulse Current
3A
Peak Pulse Power
50W
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reverse Breakdown Voltage
6V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Series
RailClamp®
Voltage
5V
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Semtech RCLAMP0502A.TCT Datasheet
Download the complete datasheet for Semtech RCLAMP0502A.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

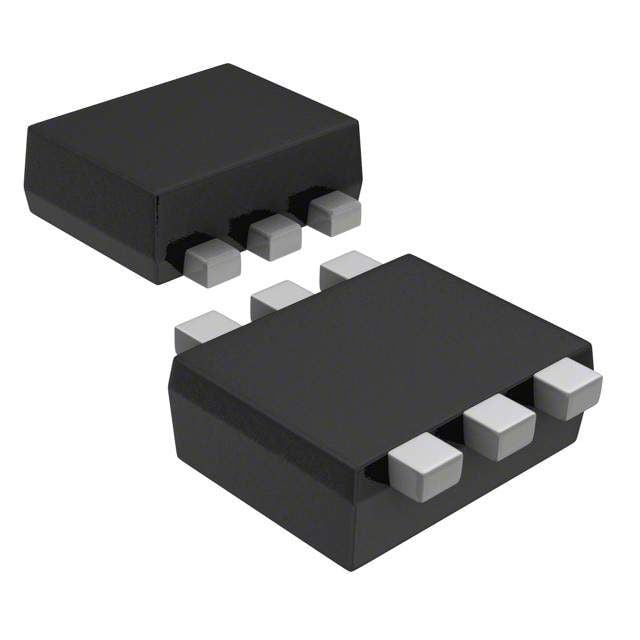

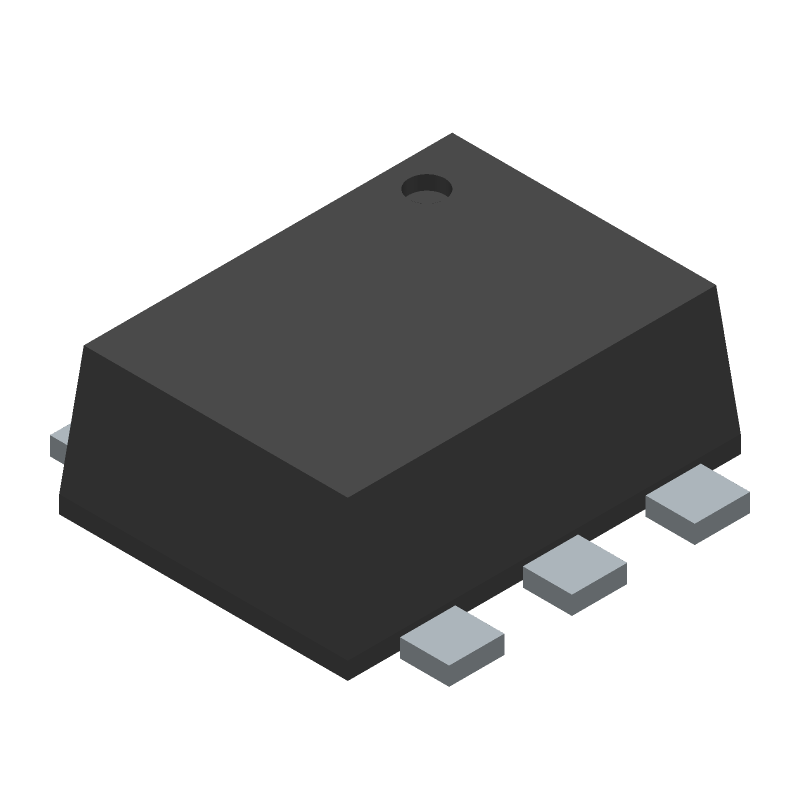

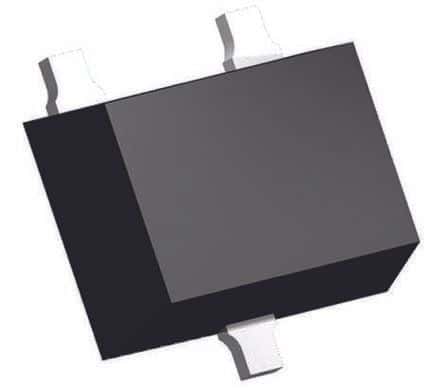

Product Images
