Unidirectional transient voltage suppressor diode designed for power line protection. Features a 100W peak pulse power rating and 3A peak pulse current capability. Offers a 6.5V reverse standoff voltage and 7V minimum breakdown voltage, with a clamping voltage of 30V. Operates across a wide temperature range from -55°C to 125°C, with a low leakage current of 1µA. This surface mount component boasts a low capacitance of 0.3pF and is RoHS compliant.
Capacitance0.3pF
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Semtech RCLAMP0502N.TCT technical specifications.
General
Capacitance
0.3pF
Clamping Voltage
30V
Clamping Voltage-Max
30V
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
1uA
Max Breakdown Voltage
12V
Min Breakdown Voltage
7V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
1uA
Mount
Surface Mount
Number of Channels
2
Number of Elements
1
Number of Unidirectional Channels
3
Operating Supply Voltage
6.5V
Packaging
Tape and Reel
Peak Pulse Current
3A
Peak Pulse Power
100W
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reverse Breakdown Voltage
7V
Reverse Standoff Voltage
6.5V
RoHS Compliant
Yes
Series
RailClamp®
Compliance
RoHS
Compliant
Datasheet
Semtech RCLAMP0502N.TCT Datasheet
Download the complete datasheet for Semtech RCLAMP0502N.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

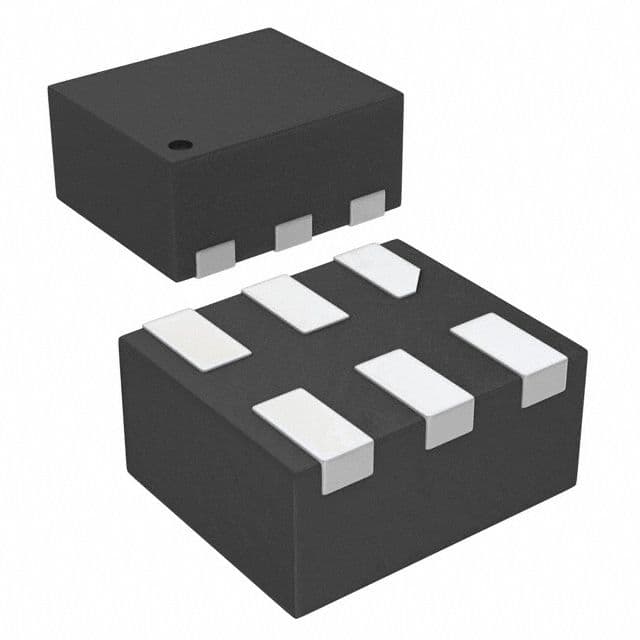

Product Images
