Unidirectional transient voltage suppressor diode offering 300W peak pulse power dissipation and 5V working voltage. Features a low capacitance of 3pF, 5µA leakage current, and 6V reverse breakdown voltage. This 8-channel, single-element silicon device is housed in a compact MSOP package for surface mounting, operating from -55°C to 125°C.
PackageMSOP
Capacitance3pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech RCLAMP0508M.TBT technical specifications.
General
Capacitance
3pF
Package/Case
MSOP
Clamping Voltage
25V
Clamping Voltage-Max
25V
Depth
3.1mm
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
5uA
Length
3.1mm
Max Breakdown Voltage
6V
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
300W
Mount
Surface Mount
Number of Channels
8
Number of Elements
1
Number of Unidirectional Channels
8
Operating Supply Voltage
5V
Packaging
Tape and Reel
Peak Pulse Current
12A
Peak Pulse Power
300W
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Series
RailClamp®
Termination
SMD/SMT
DC Rated Voltage
5V
Width
3mm
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Semtech RCLAMP0508M.TBT Datasheet
Download the complete datasheet for Semtech RCLAMP0508M.TBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

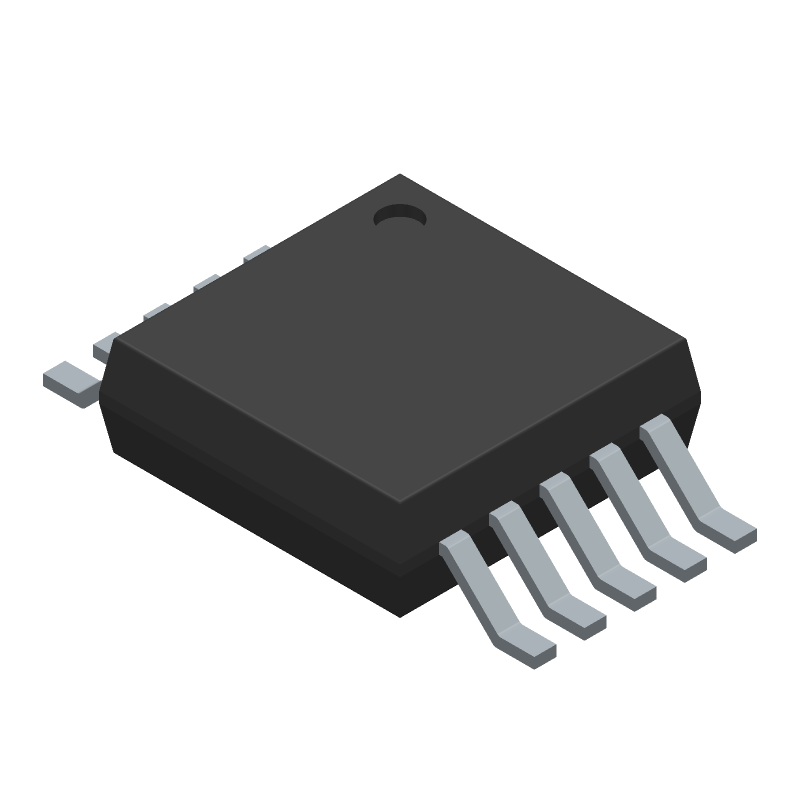

Product Images
