Unidirectional Transient Voltage Suppressor Diode for surface mount applications. Features a 5V reverse standoff voltage and 6V reverse breakdown voltage. Offers a 15V clamping voltage with a maximum power dissipation of 150W. Low leakage current of 1uA and 0.3pF capacitance. Operating temperature range from -55°C to 125°C. Packaged in tape and reel.
Capacitance0.3pF
Voltage Rating5V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Semtech RCLAMP0524P.TCT technical specifications.
General
Capacitance
0.3pF
Clamping Voltage
15V
Clamping Voltage-Max
15V
Depth
1mm
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
1uA
Length
2.5mm
Max Breakdown Voltage
6V
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
150W
Mount
Surface Mount
Number of Bidirectional Channels
4
Number of Channels
4
Number of Elements
1
Number of Unidirectional Channels
4
Operating Supply Voltage
5V
Packaging
Tape and Reel
Peak Pulse Current
1A
Peak Pulse Power
150W
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Series
RailClamp®
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Semtech RCLAMP0524P.TCT Datasheet
Download the complete datasheet for Semtech RCLAMP0524P.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

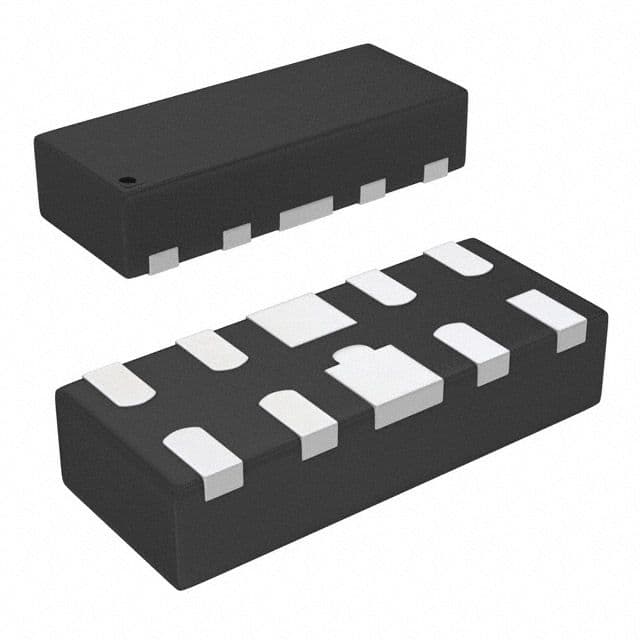

Product Images
