Unidirectional transient voltage suppressor diode offering 450W peak pulse power and 25A peak pulse current. Features a 2.5V working voltage, 2.7V minimum breakdown voltage, and 7.5V clamping voltage. This surface mount component has a low leakage current of 500nA and a capacitance of 5pF. Designed for power line protection, it operates within a temperature range of -55°C to 125°C and is RoHS compliant.
Capacitance5pF
Voltage Rating2.5V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Semtech RCLAMP2504N.TCT technical specifications.
General
Capacitance
5pF
Clamping Voltage
7.5V
Clamping Voltage-Max
18V
Depth
2.6mm
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
500nA
Length
2.6mm
Min Breakdown Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Channels
4
Number of Elements
1
Number of Unidirectional Channels
4
Operating Supply Voltage
2.5V
Packaging
Tape and Reel
Peak Pulse Current
25A
Peak Pulse Power
450W
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
2.5V
RoHS Compliant
Yes
Series
RailClamp®
Working Voltage
2.5V
Compliance
RoHS
Compliant
Datasheet
Semtech RCLAMP2504N.TCT Datasheet
Download the complete datasheet for Semtech RCLAMP2504N.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

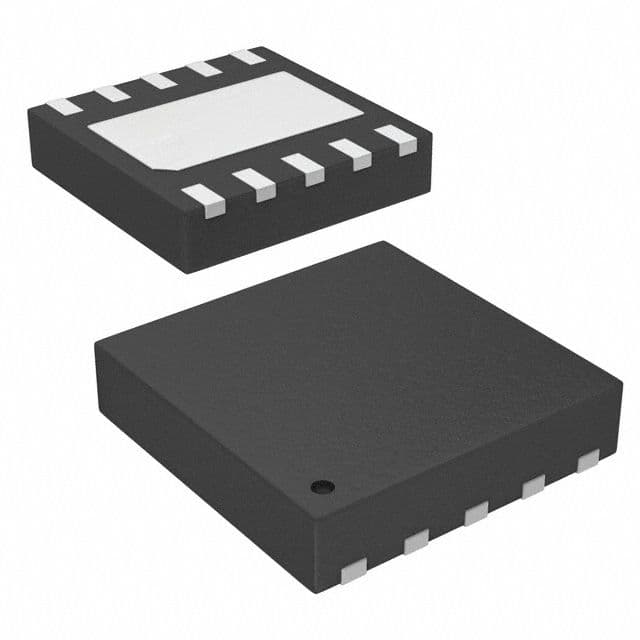

Product Images
