Unidirectional Transient Voltage Suppressor (TVS) diode offering 450W peak pulse power and 25A peak pulse current. Features a 3.3V working voltage, 3.5V minimum breakdown voltage, and 10.5V clamping voltage. This surface mount component, housed in a 2.60 x 2.60 MM QFN package, provides 4 unidirectional channels with a low leakage current of 5uA. Operating across a wide temperature range of -55°C to 125°C, it is RoHS compliant.
PackageQFN
Capacitance3.8pF
Voltage Rating3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech RCLAMP3304N.TCT technical specifications.
General
Capacitance
3.8pF
Package/Case
QFN
Clamping Voltage
10.5V
Clamping Voltage-Max
18V
Depth
2.6mm
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
5uA
Length
2.6mm
Min Breakdown Voltage
3.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Channels
4
Number of Elements
1
Number of Unidirectional Channels
4
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Peak Pulse Current
25A
Peak Pulse Power
450W
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
RailClamp®
DC Rated Voltage
3.3V
Width
2.6mm
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Semtech RCLAMP3304N.TCT Datasheet
Download the complete datasheet for Semtech RCLAMP3304N.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

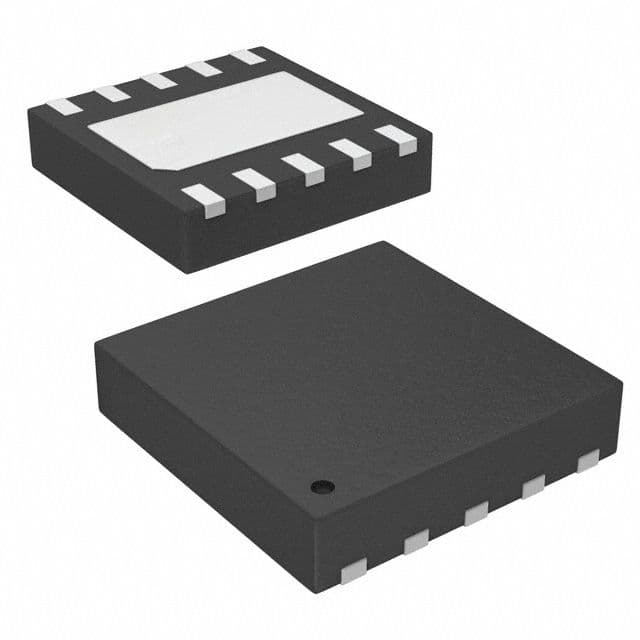

Product Images
