Voltage-mode switching regulator with 1.5A maximum output current and 1V fixed output voltage. Features a 1.5MHz maximum switching frequency and 93% efficiency. Operates from a 2.9V to 5.5V input voltage range. Packaged in a SOT-23-5 surface mount configuration. RoHS compliant and lead-free.
PackageSOT-23-5
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech SC189ASKTRT technical specifications.
General
Package/Case
SOT-23-5
Efficiency
93%
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.9V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Min Output Voltage
1V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
5.5V
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed
Output Voltage
1V
Packaging
Cut Tape
RoHS Compliant
Yes
Switching Frequency-Max
1.5MHz
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Semtech SC189ASKTRT Datasheet
Download the complete datasheet for Semtech SC189ASKTRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

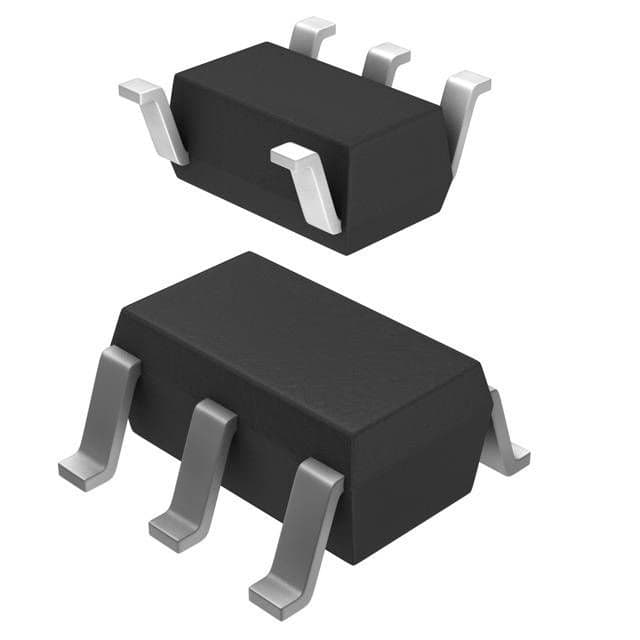

Product Images
