Unidirectional transient voltage suppressor diode for surface mount applications. Features a 5V working voltage, 6V reverse breakdown voltage, and 14.5V clamping voltage. Offers 350W peak pulse power dissipation and 24A peak pulse current handling. Operates across a -55°C to 125°C temperature range with a low 10uA leakage current. This silicon component is RoHS compliant and packaged on tape and reel.
Voltage5V
Current24A
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech SD05.TCT technical specifications.
General
Clamping Voltage
14.5V
Clamping Voltage-Max
14.5V
Current
24A
Depth
1.4mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
10uA
Length
1.8mm
Max Breakdown Voltage
6V
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
350W
Mount
Surface Mount
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
5V
Packaging
Tape and Reel
Peak Pulse Current
24A
Peak Pulse Power
350W
Polarity
Unidirectional
Power Dissipation
350W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Voltage
5V
DC Rated Voltage
5V
Width
1.4mm
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Semtech SD05.TCT Datasheet
Download the complete datasheet for Semtech SD05.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

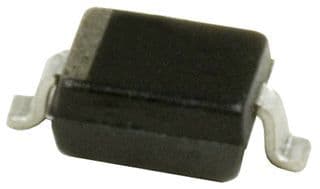

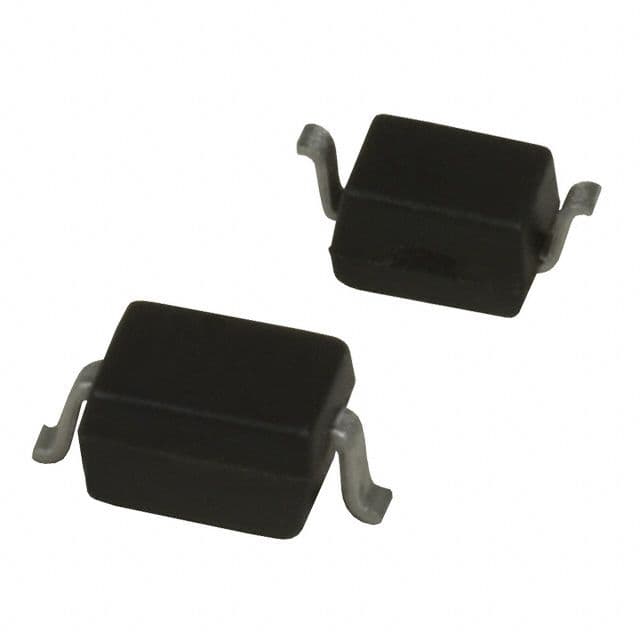

Product Images
