Bidirectional Transient Voltage Suppressor (TVS) diode offering 350W peak pulse power and 24A peak pulse current. Features a 5V working voltage, 6V minimum breakdown voltage, and 14.5V clamping voltage. Designed for surface mount with a compact 1.8mm x 1.4mm x 1mm package. Operates across a wide temperature range from -55°C to 125°C, with a low leakage current of 10µA. This silicon component provides ESD protection and is RoHS compliant.
Voltage Rating5V
MountingSurface Mount
PolarityBidirectional
Power350W
Quick Jump:
Technical Specifications
Semtech SD05C.TCT technical specifications.
General
Clamping Voltage
14.5V
Clamping Voltage-Max
14.5V
Depth
1.4mm
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
Yes
Height
1mm
Lead Free
Lead Free
Leakage Current
10uA
Length
1.8mm
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
10uA
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Elements
1
Operating Supply Voltage
5V
Packaging
Tape and Reel
Peak Pulse Current
24A
Peak Pulse Power
350W
Polarity
Bidirectional
Power Dissipation
350W
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
6V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
DC Rated Voltage
5V
Width
1.4mm
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Semtech SD05C.TCT Datasheet
Download the complete datasheet for Semtech SD05C.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

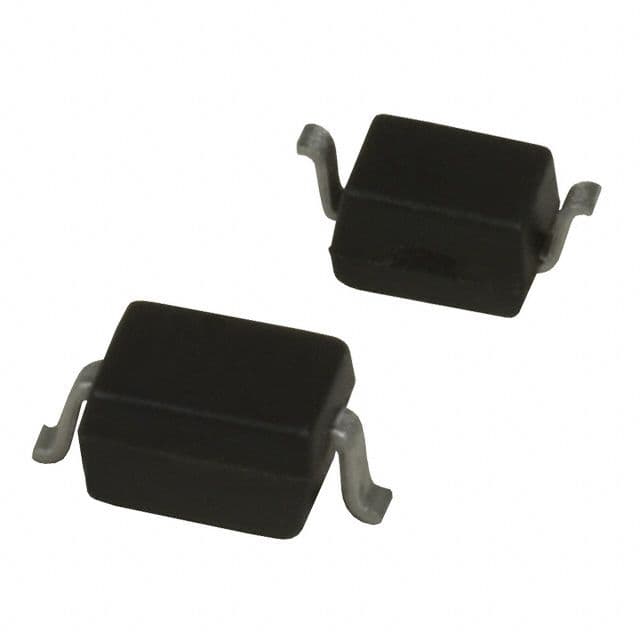

Product Images
