Bidirectional Transient Voltage Suppressor (TVS) diode offering 350W peak pulse power dissipation. Features a 12V reverse standoff voltage and 24V clamping voltage. Operates across a -55°C to 125°C temperature range with a low leakage current of 1µA. Surface mountable silicon component with a lead-free package.
Voltage Rating12V
MountingSurface Mount
PolarityBidirectional
Power350W
Quick Jump:
Technical Specifications
Semtech SD12C.TCT technical specifications.
General
Clamping Voltage
24V
Clamping Voltage-Max
24V
Depth
1.4mm
Diode Type
ZENER
Direction
Bidirectional
Lead Free
Lead Free
Leakage Current
1uA
Length
1.8mm
Min Breakdown Voltage
13.3V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Elements
1
Packaging
Tape and Reel
Peak Pulse Current
15A
Peak Pulse Power
350W
Polarity
Bidirectional
Power Dissipation
350W
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
13.3V
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Working Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Semtech SD12C.TCT Datasheet
Download the complete datasheet for Semtech SD12C.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

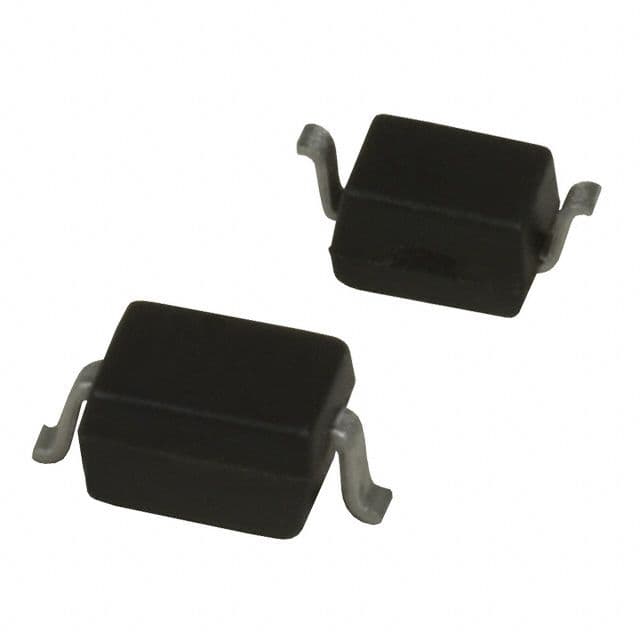

Product Images
