Unidirectional Transient Voltage Suppressor (TVS) diode offering 400W peak pulse power dissipation. Features a 12V reverse standoff voltage and 26V clamping voltage. Designed for surface mount applications in a SOT-23 package, this silicon component provides ESD protection and operates across a -55°C to 125°C temperature range.
PackageSOT-23
Voltage Rating12V
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Semtech SM712.TCT technical specifications.
General
Package/Case
SOT-23
Clamping Voltage
26V
Clamping Voltage-Max
12V
Depth
1.3mm
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
Yes
Height
0.95mm
Lead Free
Lead Free
Leakage Current
1uA
Length
2.9mm
Max Breakdown Voltage
13.3V
Min Breakdown Voltage
7.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
400W
Max Reverse Leakage Current
20uA
Mount
Surface Mount
Number of Bidirectional Channels
2
Number of Channels
2
Number of Elements
2
Packaging
Tape and Reel
Peak Pulse Current
17A
Peak Pulse Power
400W
Polarity
Bidirectional
Power Dissipation
400W
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
13.3V
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
DC Rated Voltage
12V
Width
1.3mm
Working Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Semtech SM712.TCT Datasheet
Download the complete datasheet for Semtech SM712.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

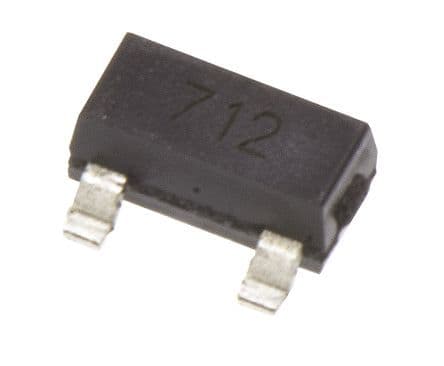

Product Images
