Surface mount transient voltage suppressor diode offering 40W peak pulse power and 3.3V working voltage. Features a minimum breakdown voltage of 3.5V and a clamping voltage of 8V. This unidirectional diode, designed with 4 elements, operates within a temperature range of -55°C to 125°C and has a low leakage current of 500nA. Its 5-pin SC package provides a capacitance of 25pF.
PackageSC
Capacitance25pF
Voltage Rating3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech SMF3.3.TCT technical specifications.
General
Capacitance
25pF
Package/Case
SC
Clamping Voltage
8V
Clamping Voltage-Max
8V
Depth
1.25mm
Diode Type
ZENER
Direction
Unidirectional, Bidirectional
Lead Free
Lead Free
Leakage Current
500nA
Length
2mm
Min Breakdown Voltage
3.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
40W
Mount
Surface Mount
Number of Channels
4
Number of Elements
4
Number of Unidirectional Channels
4
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Peak Pulse Current
5A
Peak Pulse Power
40W
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
SMF
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Semtech SMF3.3.TCT Datasheet
Download the complete datasheet for Semtech SMF3.3.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

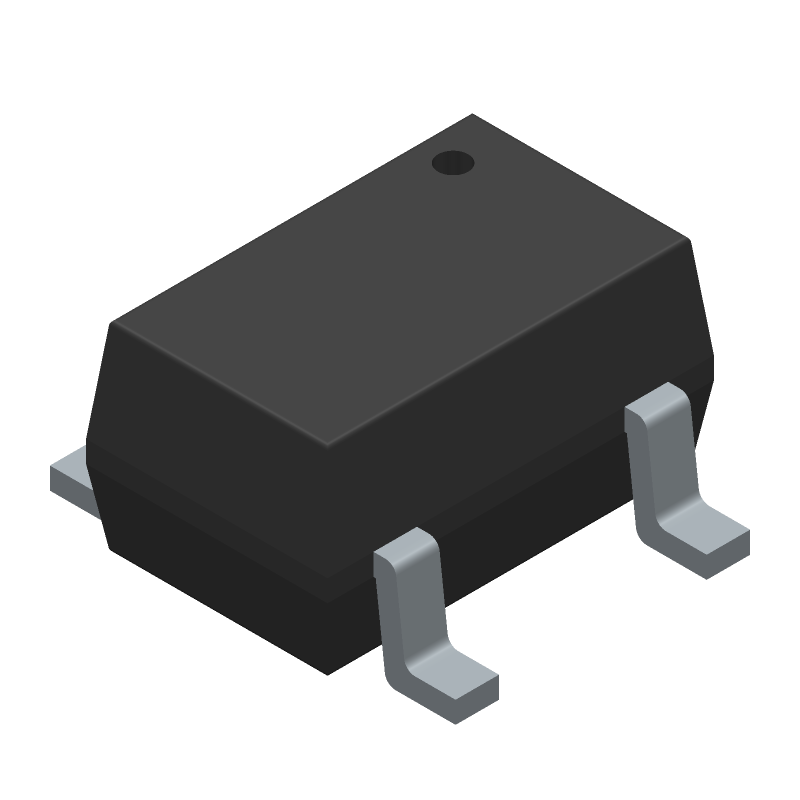

Product Images
