Unidirectional transient voltage suppressor diode, 500W peak pulse power, 5V working voltage, and 6V minimum breakdown voltage. Features 25A peak pulse current, 20V clamping voltage, and 5µA maximum reverse leakage current. This surface mount component offers ESD protection and power line protection, operating from -55°C to 125°C. Packaged in a lead-free SOT-143 case.
PackageSOT-143
Capacitance10pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech SR05.TCT technical specifications.
General
Capacitance
10pF
Package/Case
SOT-143
Clamping Voltage
20V
Depth
1.4mm
Direction
Unidirectional
ESD Protection
Yes
Height
1.07mm
Lead Free
Lead Free
Leakage Current
5uA
Length
3.04mm
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500W
Max Reverse Leakage Current
5uA
Mount
Surface Mount
Number of Elements
1
Number of Unidirectional Channels
2
Operating Supply Voltage
5V
Packaging
Tape and Reel
Peak Pulse Current
25A
Peak Pulse Power
500W
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
6V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Series
RailClamp®, SR
DC Rated Voltage
5V
Width
1.4mm
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Semtech SR05.TCT Datasheet
Download the complete datasheet for Semtech SR05.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

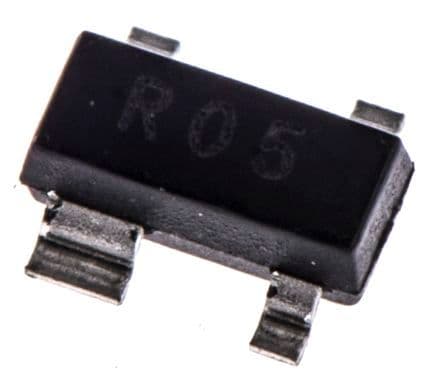

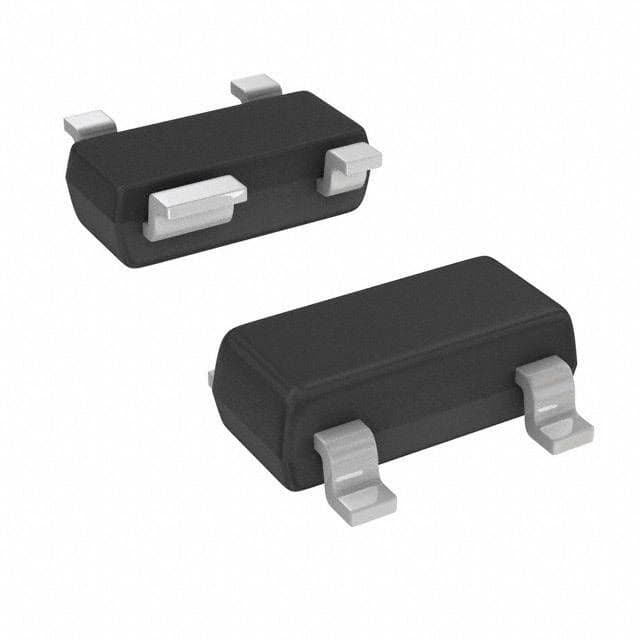

Product Images
