Unidirectional transient voltage suppressor diode for surface mount applications. Features 500W peak pulse power, 16A peak pulse current, and 12V reverse standoff voltage. Offers a clamping voltage of 31V and a maximum breakdown voltage of 13.3V. Operates across a temperature range of -55°C to 125°C with a low leakage current of 1uA. Packaged in tape and reel, this RoHS compliant component is designed for power line protection.
PackageTO-253-4
Capacitance5pF
Voltage Rating12V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech SR12.TCT technical specifications.
General
Capacitance
5pF
Package/Case
TO-253-4
Clamping Voltage
31V
Clamping Voltage-Max
31V
Depth
1.4mm
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
1uA
Length
3.04mm
Max Breakdown Voltage
13.3V
Min Breakdown Voltage
13.3V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Channels
2
Number of Unidirectional Channels
2
Packaging
Tape and Reel
Peak Pulse Current
16A
Peak Pulse Power
500W
Power Line Protection
Yes
Radiation Hardening
No
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Series
RailClamp®, SR
DC Rated Voltage
12V
Width
2.37mm
Working Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Semtech SR12.TCT Datasheet
Download the complete datasheet for Semtech SR12.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

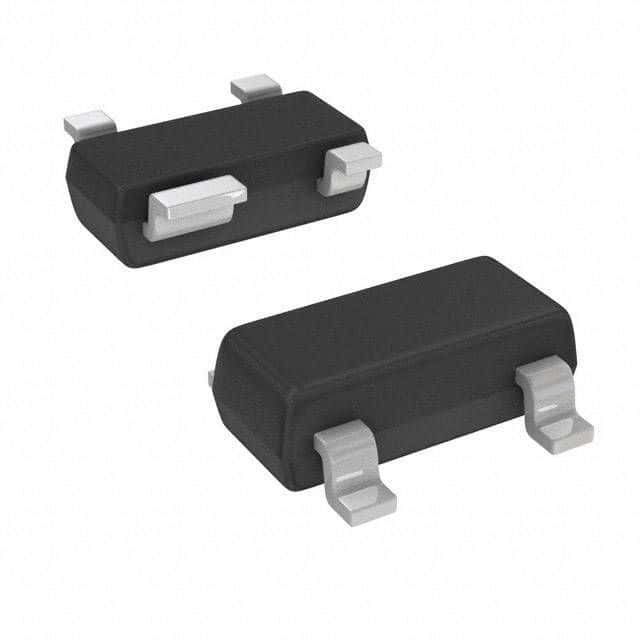

Product Images
