Unidirectional transient voltage suppressor diode offering 150W peak pulse power and 3.3V reverse standoff voltage. Features a low capacitance of 5pF and a clamping voltage of 15V. Designed for surface mount applications with a compact SOT-143 package. Provides ESD protection and power line protection with a maximum operating temperature of 125°C.
PackageSOT-143
Capacitance5pF
Voltage Rating3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech SR3.3.TCT technical specifications.
General
Capacitance
5pF
Package/Case
SOT-143
Clamping Voltage
15V
Clamping Voltage-Max
15V
Depth
1.4mm
Direction
Unidirectional
ESD Protection
Yes
Height
1.07mm
Lead Free
Lead Free
Leakage Current
1uA
Length
3.04mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
150W
Max Reverse Leakage Current
1uA
Mount
Surface Mount
Number of Channels
2
Number of Elements
1
Number of Unidirectional Channels
2
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Peak Pulse Current
10A
Peak Pulse Power
150W
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
RailClamp®, SR
Termination
SMD/SMT
DC Rated Voltage
3.3V
Width
1.4mm
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Semtech SR3.3.TCT Datasheet
Download the complete datasheet for Semtech SR3.3.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

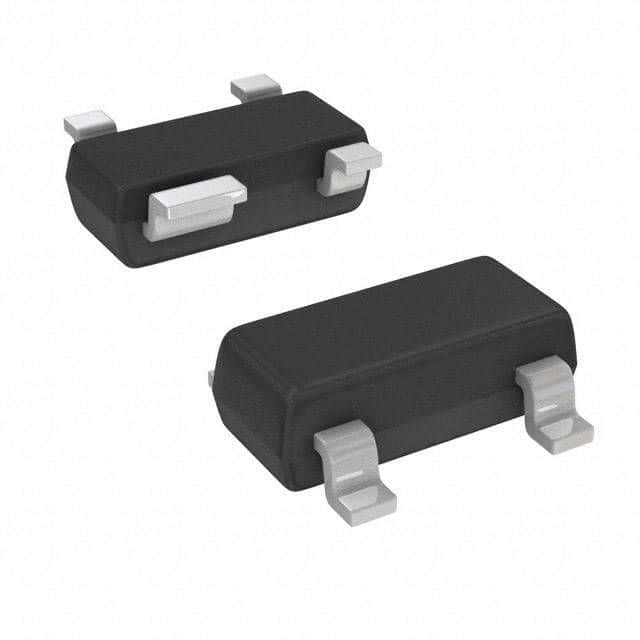

Product Images
