Unidirectional transient voltage suppressor diode offering 500W peak pulse power and 6V minimum breakdown voltage. Features a 3.3V working voltage, 20V clamping voltage, and 8pF capacitance. Designed for surface mount with a SOIC package, this silicon component provides ESD and power line protection. Operates across a -55°C to 125°C temperature range and is RoHS compliant.
PackageSOIC
Capacitance8pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech SRDA05-6.TBT technical specifications.
General
Capacitance
8pF
Package/Case
SOIC
Clamping Voltage
20V
Clamping Voltage-Max
15V
Depth
4mm
Direction
Unidirectional
ESD Protection
Yes
Height
1.5mm
Lead Free
Lead Free
Leakage Current
10uA
Length
5mm
Max Breakdown Voltage
6V
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
500W
Max Reverse Leakage Current
10uA
Mount
Surface Mount
Number of Bidirectional Channels
6
Number of Channels
6
Number of Elements
1
Operating Supply Voltage
1.5V
Packaging
Tape and Reel
Peak Pulse Current
25A
Peak Pulse Power
500W
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Series
RailClamp®, SRDA
Termination
SMD/SMT
Width
4mm
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Semtech SRDA05-6.TBT Datasheet
Download the complete datasheet for Semtech SRDA05-6.TBT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

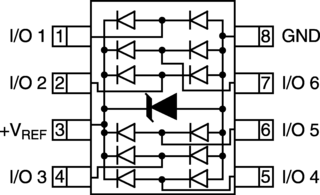

Product Images
