Unidirectional transient voltage suppressor diode offering 2.5kW peak pulse power and 95A peak pulse current. Features a 6V reverse standoff voltage, 6.8V minimum breakdown voltage, and 29V clamping voltage. Designed for surface mount with a 2.6mm x 2.6mm footprint and 0.60mm height. Operates across a -55°C to 125°C temperature range with a low leakage current of 5uA. RoHS compliant and suitable for power line protection.
Capacitance25pF
Voltage Rating6V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Semtech TCLAMP0602N.TCT technical specifications.
General
Capacitance
25pF
Clamping Voltage
29V
Clamping Voltage-Max
29V
Depth
2.6mm
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
5uA
Length
2.6mm
Min Breakdown Voltage
6.8V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Bidirectional Channels
2
Number of Channels
2
Number of Elements
1
Operating Supply Voltage
6V
Packaging
Tape and Reel
Peak Pulse Current
95A
Peak Pulse Power
2.5kW
Polarity
Unidirectional
Power Line Protection
Yes
Radiation Hardening
No
Reverse Breakdown Voltage
6.8V
Reverse Standoff Voltage
6V
RoHS Compliant
Yes
Series
TransClamp™
DC Rated Voltage
6V
Width
2.6mm
Working Voltage
6V
Compliance
RoHS
Compliant
Datasheet
Semtech TCLAMP0602N.TCT Datasheet
Download the complete datasheet for Semtech TCLAMP0602N.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

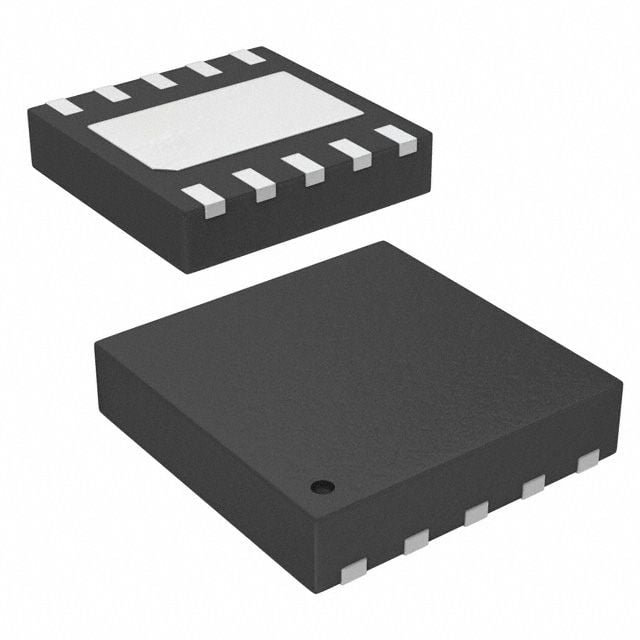

Product Images
