Surface mount transient voltage suppressor diode offering 12V reverse standoff voltage and 13.3V minimum breakdown voltage. Features 300W peak pulse power and 12A peak pulse current for robust power line protection. Operates across a wide temperature range from -55°C to 125°C, with two unidirectional channels. RoHS compliant and packaged in cut tape.
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech TCLAMP1202P.TGT technical specifications.
General
Min Breakdown Voltage
13.3V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Unidirectional Channels
2
Packaging
Cut Tape
Peak Pulse Current
12A
Peak Pulse Power
300W
Power Line Protection
Yes
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Series
TransClamp™
Compliance
RoHS
Compliant
Datasheet
Semtech TCLAMP1202P.TGT Datasheet
Download the complete datasheet for Semtech TCLAMP1202P.TGT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

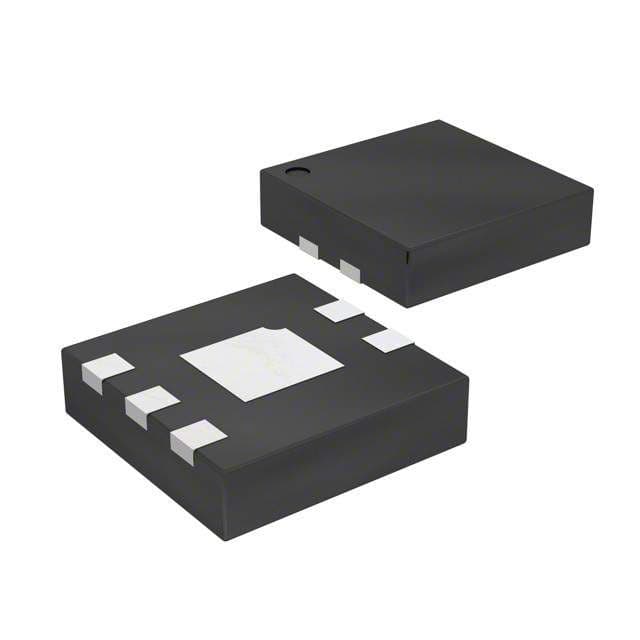

Product Images
