Unidirectional Transient Voltage Suppressor (TVS) diode, 2.5kW peak pulse power, 3.3V working voltage, and 25V clamping voltage. Features a 25pF capacitance, 1µA leakage current, and 95A peak pulse current. Designed for surface mount applications with a 2.6mm x 2.6mm footprint and 0.60mm height. Operates from -40°C to +85°C and is RoHS compliant.
Capacitance25pF
Voltage Rating3.3V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech TCLAMP3302N.TCT technical specifications.
General
Capacitance
25pF
Clamping Voltage
25V
Clamping Voltage-Max
25V
Depth
2.6mm
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
1uA
Length
2.6mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
2.5kW
Mount
Surface Mount
Number of Bidirectional Channels
2
Number of Channels
2
Operating Supply Voltage
3.3V
Packaging
Cut Tape
Peak Pulse Current
95A
Peak Pulse Power
2.5kW
Power Line Protection
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
TransClamp™
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Semtech TCLAMP3302N.TCT Datasheet
Download the complete datasheet for Semtech TCLAMP3302N.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

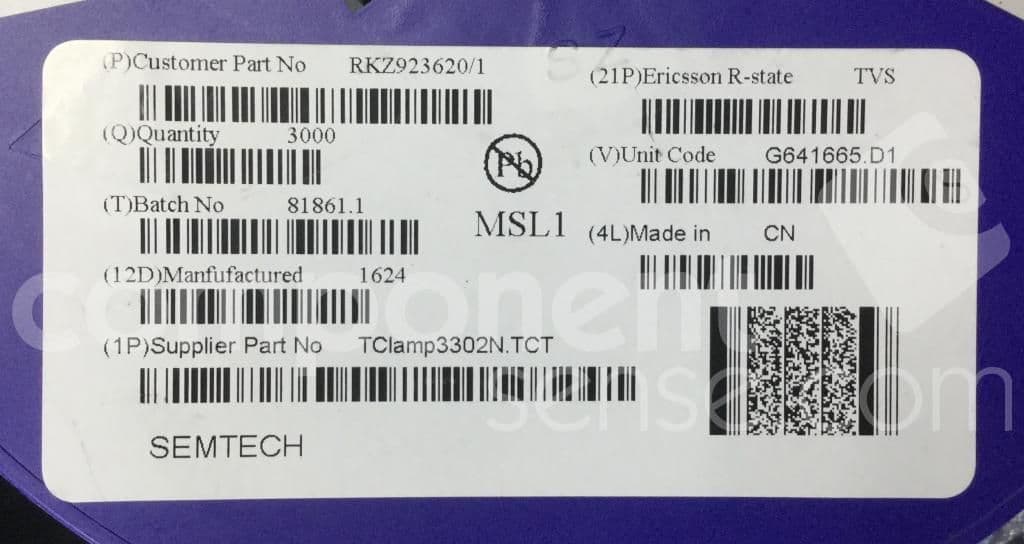

Product Images
