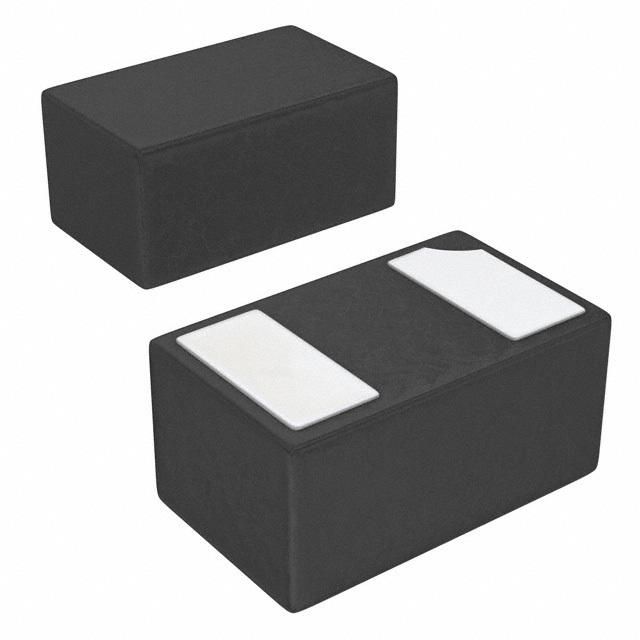

Bidirectional transient voltage suppressor diode offering 170W peak pulse power and 12A peak pulse current. Features a 5V reverse standoff voltage, 6V minimum breakdown voltage, and 14V clamping voltage. This single-element silicon device operates from -55°C to 125°C and has a low leakage current of 1µA. Housed in an ultra-small 1006 (0402) surface-mount package, it is RoHS compliant.
Package0402
Capacitance75pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Semtech UCLAMP0511P.TCT technical specifications.
General
Capacitance
75pF
Case Code (Imperial)
0402
Case Code (Metric)
1006
Package/Case
0402
Clamping Voltage
14V
Clamping Voltage-Max
14V
Depth
0.6mm
Diode Type
ZENER
Direction
Bidirectional
Lead Free
Lead Free
Leakage Current
1uA
Length
1mm
Max Breakdown Voltage
10V
Min Breakdown Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
170W
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
5V
Packaging
Tape and Reel
Peak Pulse Current
12A
Peak Pulse Power
170W
Polarity
Bidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
6V
Reverse Standoff Voltage
5V
RoHS Compliant
Yes
Series
uClamp®
Working Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Semtech UCLAMP0511P.TCT Datasheet
Download the complete datasheet for Semtech UCLAMP0511P.TCT to view detailed technical specifications.
