Bidirectional ESD suppressor diode for surface mount applications. Features a 12V reverse standoff voltage, 28.5V clamping voltage, and 13.3V breakdown voltage. Offers 200W peak pulse power and 7A peak pulse current. Operates across a -55°C to 125°C temperature range with 1uA leakage current. Packaged in a compact 0402 (1006 metric) case.
Package0402
Capacitance25pF
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
Semtech UCLAMP1211P.TCT technical specifications.
General
Capacitance
25pF
Case Code (Imperial)
0402
Case Code (Metric)
1006
Package/Case
0402
Clamping Voltage
28.5V
Clamping Voltage-Max
28.5V
Diode Type
ZENER
Direction
Bidirectional
ESD Protection
Yes
Height
0.47mm
Lead Free
Lead Free
Leakage Current
1uA
Length
1mm
Max Breakdown Voltage
13.3V
Min Breakdown Voltage
13.3V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
1uA
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
12V
Packaging
Tape and Reel
Peak Pulse Current
7A
Peak Pulse Power
200W
Polarity
Bidirectional
Power Line Protection
No
Reverse Breakdown Voltage
13.3V
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Series
uClamp®
Width
0.6mm
Compliance
RoHS
Compliant
Datasheet
Semtech UCLAMP1211P.TCT Datasheet
Download the complete datasheet for Semtech UCLAMP1211P.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

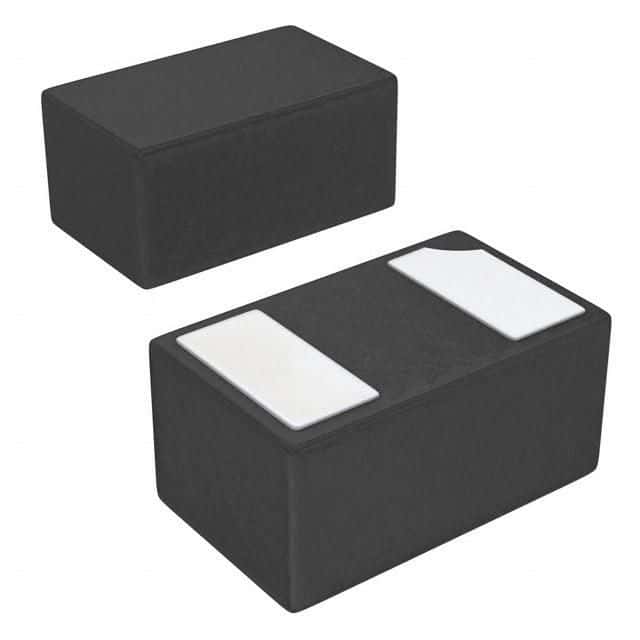

Product Images
