Unidirectional transient voltage suppressor diode with 40W peak pulse power and 5A peak pulse current. Features a 2.5V reverse standoff voltage and 2.7V minimum breakdown voltage, clamping at 7.5V. This silicon device offers a low leakage current of 50nA and operates within a temperature range of -40°C to 85°C. Designed for surface mount applications with a single element and unidirectional channel, it is HALOGEN FREE and ROHS COMPLIANT.
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Semtech UCLAMP2501T.TCT technical specifications.
General
| Clamping Voltage | 7.5V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Leakage Current | 50nA |
| Min Breakdown Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Reverse Leakage Current | 50nA |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Number of Unidirectional Channels | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5A |
| Peak Pulse Power | 40W |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 2.5V |
| RoHS Compliant | Yes |
| Series | uClamp® |
Compliance
| RoHS | Compliant |
Datasheet
Semtech UCLAMP2501T.TCT Datasheet
Download the complete datasheet for Semtech UCLAMP2501T.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

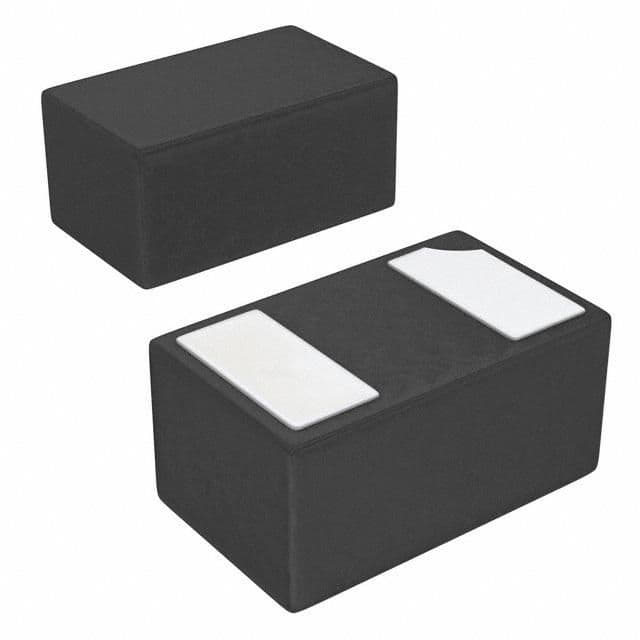

Product Images
