Unidirectional transient voltage suppressor diode for surface mount applications. Features a 3.3V working voltage, 100W peak pulse power, and 10A peak pulse current. Offers a minimum breakdown voltage of 3.5V and a clamping voltage of 9.5V. Operates across a temperature range of -55°C to 125°C with a low leakage current of 500nA. This silicon diode is RoHS compliant and packaged on tape and reel.
Capacitance50pF
Voltage Rating3.3V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Semtech UCLAMP3301D.TCT technical specifications.
General
Capacitance
50pF
Clamping Voltage
9.5V
Clamping Voltage-Max
9.5V
Depth
1.28mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
500nA
Length
1.64mm
Min Breakdown Voltage
3.5V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
100W
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Peak Pulse Current
10A
Peak Pulse Power
100W
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
uClamp®
DC Rated Voltage
3.3V
Width
1.37mm
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Semtech UCLAMP3301D.TCT Datasheet
Download the complete datasheet for Semtech UCLAMP3301D.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

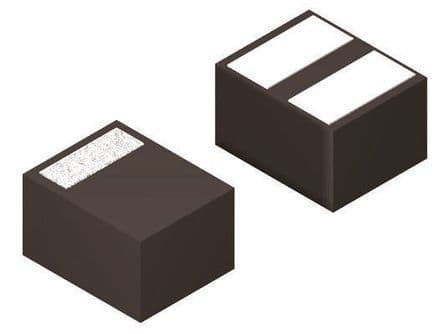

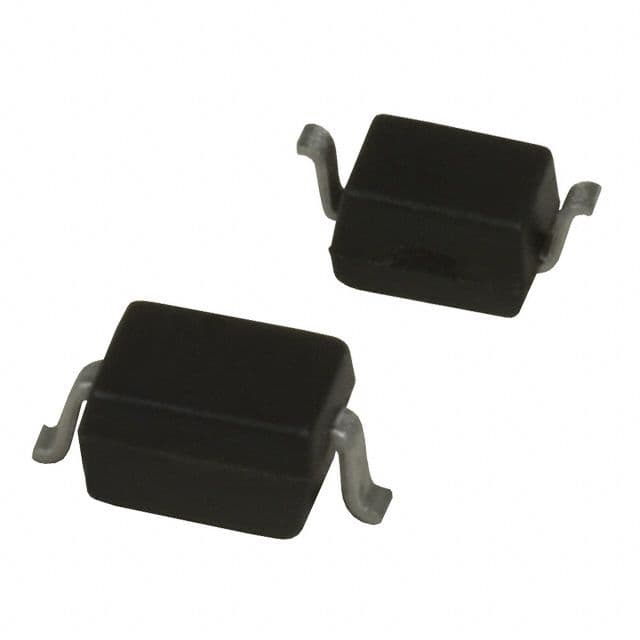

Product Images
