Unidirectional transient voltage suppressor diode offering 40W peak pulse power and 5A peak pulse current. Features a 3.3V reverse standoff voltage and 8V clamping voltage. This silicon diode provides ESD protection with a low leakage current of 500nA. Housed in an ultra-small 1006 (0402) surface mount package, it operates from -40°C to 85°C and is halogen-free and RoHS compliant.
Package0402
Capacitance25pF
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Semtech UCLAMP3301P.TCT technical specifications.
General
Capacitance
25pF
Case Code (Imperial)
0402
Case Code (Metric)
1006
Package/Case
0402
Clamping Voltage
8V
Clamping Voltage-Max
8V
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Height
0.47mm
Lead Free
Lead Free
Leakage Current
500nA
Length
1mm
Min Breakdown Voltage
3.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Reverse Leakage Current
500nA
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Packaging
Tape and Reel
Peak Pulse Current
5A
Peak Pulse Power
40W
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
uClamp®
Width
0.6mm
Compliance
RoHS
Compliant
Datasheet
Semtech UCLAMP3301P.TCT Datasheet
Download the complete datasheet for Semtech UCLAMP3301P.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

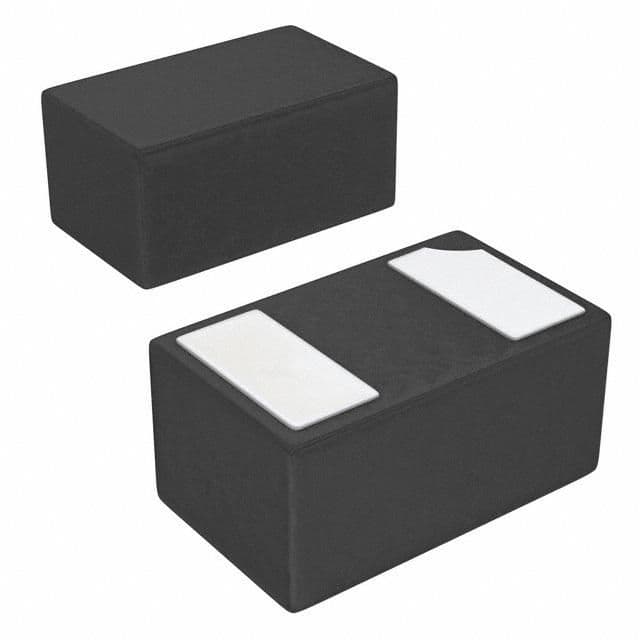

Product Images
