Unidirectional transient voltage suppressor diode, 40W peak pulse power, 3.3V reverse standoff voltage, and 2.8V minimum breakdown voltage. Features a 5A peak pulse current, 8V clamping voltage, and 500nA leakage current. This 4-element silicon diode offers a low capacitance of 22pF and operates within a -55°C to 125°C temperature range. Supplied in an ultra-small SC-89 package for surface mounting.
PackageSC
Capacitance22pF
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Semtech UCLAMP3304A.TCT technical specifications.
General
Capacitance
22pF
Package/Case
SC
Clamping Voltage
8V
Clamping Voltage-Max
8V
Diode Type
ZENER
Direction
Unidirectional
Height
600um
Lead Free
Lead Free
Leakage Current
500nA
Length
1.6mm
Min Breakdown Voltage
2.8V
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Reverse Leakage Current
500nA
Mount
Surface Mount
Number of Channels
4
Number of Elements
4
Number of Unidirectional Channels
4
Operating Supply Voltage
3.3V
Packaging
Tape and Reel
Peak Pulse Current
5A
Peak Pulse Power
40W
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reverse Breakdown Voltage
2.8V
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
uClamp®
DC Rated Voltage
3.3V
Width
1.2mm
Compliance
RoHS
Compliant
Datasheet
Semtech UCLAMP3304A.TCT Datasheet
Download the complete datasheet for Semtech UCLAMP3304A.TCT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

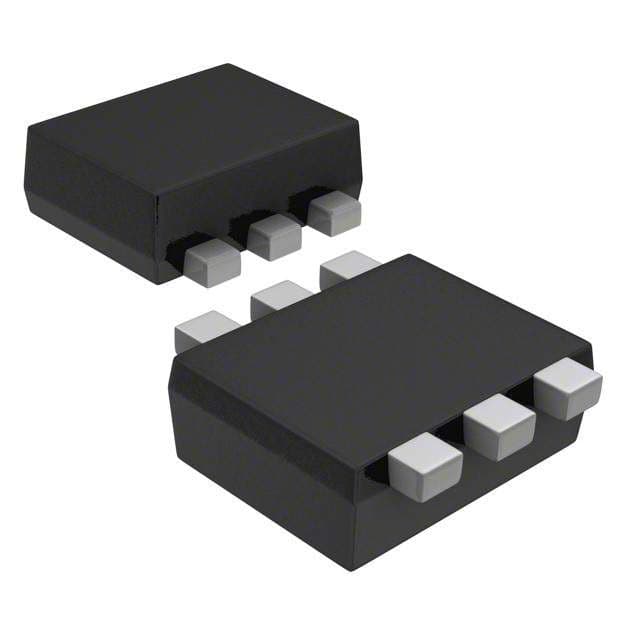

Product Images
