The 3RT10241AP00 relay from Siemens is a 3-pole electromechanical device with a contact current rating of 12A. It has a 3.3W coil that operates at 230V AC and is mounted on a DIN rail. The relay measures 91mm in depth, 85mm in height, and 85mm in length, with a width of 45mm. It has a temperature range of -25°C to 60°C and a termination type of screw.
MountingDIN Rail
Quick Jump:
Technical Specifications
Siemens 3RT10241AP00 technical specifications.
General
| Coil Power | 3.3W |
| Coil Voltage (AC) | 230V |
| Contact Current Rating | 12A |
| Contact Type | 3 makers |
| Depth | 91mm |
| Height | 85mm |
| Length | 85mm |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -25°C |
| Mount | DIN Rail |
| Number of Poles | 3 |
| Reach SVHC Compliant | Unknown |
| Series | 3RT1 |
| Termination | Screw |
| Width | 45mm |
Compliance
| RoHS | Compliant |
Datasheet
Siemens 3RT10241AP00 Datasheet
Download the complete datasheet for Siemens 3RT10241AP00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

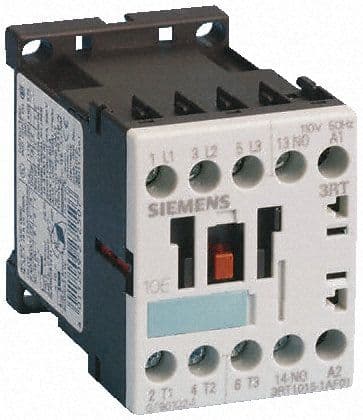

Product Images
