Siemens
3RT1034-1BB40
Electromechanical Relay 24VDC 45A 3PST-NO(55x130x112)mm DIN Rail Contactor Relay
MountingDIN Rail
Quick Jump:
Technical Specifications
Siemens 3RT1034-1BB40 technical specifications.
General
Coil Voltage (DC)
24V
Contact Current Rating
32A
Contact Type
3 makers
Depth
130mm
Height
112mm
Length
112mm
Max Operating Temperature
60°C
Min Operating Temperature
-25°C
Mount
DIN Rail
Number of Poles
3
Series
3RT1
Termination
Screw
Throw Configuration
3P
Width
55mm
Compliance
RoHS
Not Compliant
Datasheet
Siemens 3RT1034-1BB40 Datasheet
Download the complete datasheet for Siemens 3RT1034-1BB40 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

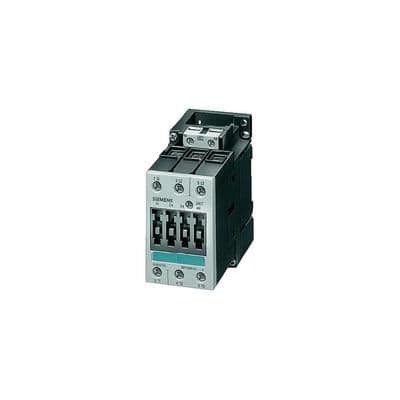

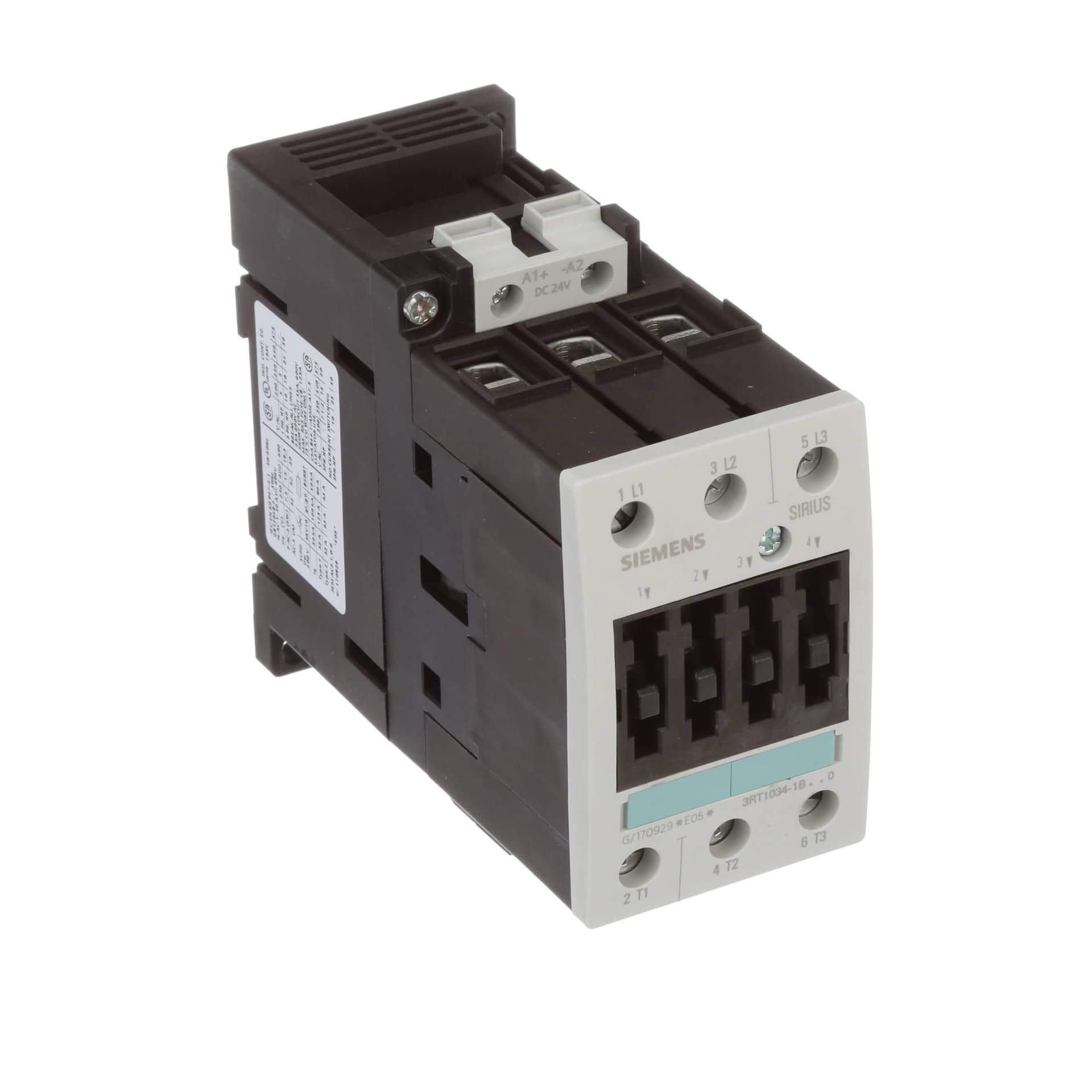

Product Images
