8-Bit Microcontroller featuring an 8051 core architecture and operating at a 25MHz maximum frequency. This FLASH memory microcontroller offers 64KB of program memory and 4.25KB of RAM, with 32 programmable I/O pins. It supports multiple interfaces including I2C, SPI, UART, USART, EBI/EMI, and SMBus, alongside 8 ADC channels and 5 timers/counters. Packaged in a TQFP-64 with tin contact plating, this surface-mount component operates from 2.7V to 3.6V and is RoHS compliant.
Frequency25MHz
PackageTQFP
MountingSurface Mount
Quick Jump:
Technical Specifications
Silicon Labs C8051F023-GQ technical specifications.
General
Access Time
25us
Package/Case
TQFP
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Height
1.05mm
Interface
I2C, SPI, UART, USART, EBI/EMI, SMBus, 2-Wire
Lead Free
Lead Free
Length
10mm
Max Frequency
25MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
64KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of ADC Channels
8
Number of Channels
5
Number of I/Os
32
Number of I2C Channels
1
Number of Programmable I/O
32
Number of SPI Channels
1
Number of Timers/Counters
5
Number of UART Channels
2
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
160
Packaging
Tray
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor
Radiation Hardening
No
RAM Size
4.25KB
RoHS Compliant
Yes
Series
C8051F02x
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F023-GQ Datasheet
Download the complete datasheet for Silicon Labs C8051F023-GQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

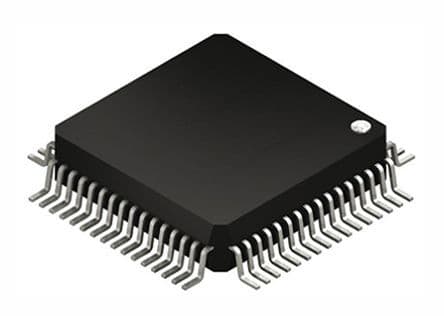

Product Images
