8-Bit Microcontroller (MCU) featuring an 8051 core architecture and 8KB of FLASH memory. Operates at a maximum frequency of 25MHz with an 8-bit data bus width. Offers 29 programmable I/Os, 5 channels, and 5 timers/counters. Supports I2C, SPI, UART, USART, SMBus, and 2-Wire interfaces. Operates within a supply voltage range of 2.7V to 3.6V and a temperature range of -40°C to 85°C. Packaged in LQFP-32.
Frequency25MHz
PackageLQFP
Quick Jump:
Technical Specifications
Silicon Labs C8051F314 technical specifications.
General
Access Time
25us
Package/Case
LQFP
Core Architecture
8051
Data Bus Width
8b
Interface
I2C, SPI, UART, USART, SMBus, 2-Wire
Lead Free
Contains Lead
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Number of Channels
5
Number of I/Os
29
Number of Programmable I/O
29
Number of Timers/Counters
5
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT
RAM Size
1.25KB
RoHS Compliant
No
Series
C8051F31x
Compliance
RoHS
Not Compliant
Datasheet
Silicon Labs C8051F314 Datasheet
Download the complete datasheet for Silicon Labs C8051F314 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

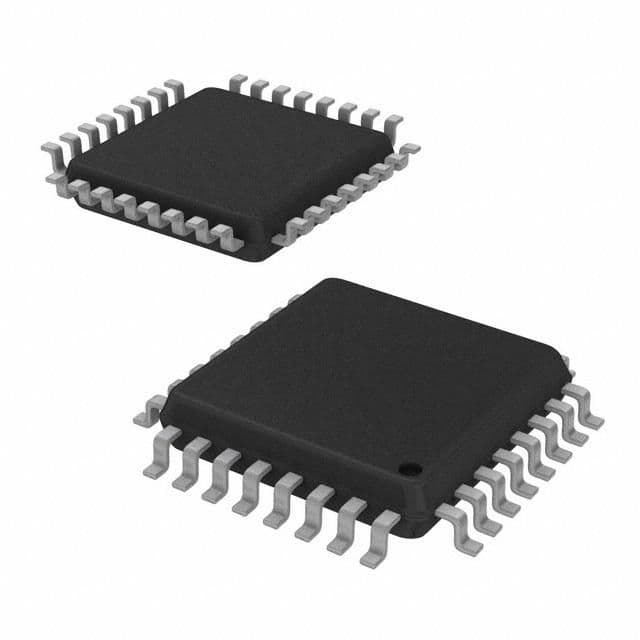

Product Images
