8-Bit FLASH Microcontroller, 25MHz, CMOS, LQFP-32 package. Features 8KB FLASH memory, 1.25KB RAM, and 29 programmable I/Os. Supports I2C, SPI, UART, USART, and SMBus interfaces. Includes 5 PWM channels, 4 timers/counters, and peripherals like POR and WDT. Operates from 2.7V to 3.6V with an internal oscillator. RoHS compliant.
Frequency25MHz
PackageLQFP
Quick Jump:
Technical Specifications
Silicon Labs C8051F314-GQ technical specifications.
General
Access Time
25us
Package/Case
LQFP
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Density
8KB
Frequency
25MHz
Height
1.45mm
Interface
I2C, SPI, UART, USART, SMBus, 2-Wire
Lead Free
Lead Free
Length
7mm
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Number of Channels
5
Number of I/Os
29
Number of I2C Channels
1
Number of Programmable I/O
29
Number of PWM Channels
5
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
1.25KB
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
C8051F31x
Termination
SMD/SMT
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F314-GQ Datasheet
Download the complete datasheet for Silicon Labs C8051F314-GQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

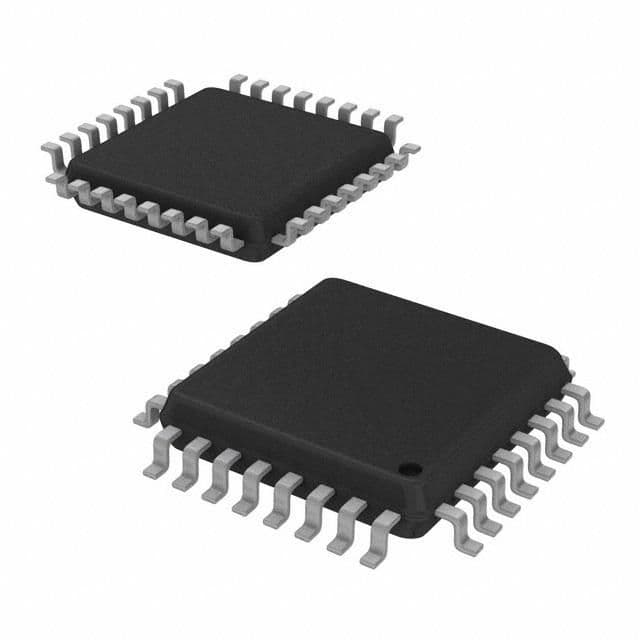

Product Images
