8-Bit Microcontroller featuring an 8051 CPU core operating at up to 25MHz. This CMOS device offers 4KB of FLASH memory and 0.75KB of RAM, with 17 programmable I/O pins. Integrated peripherals include POR, PWM, and WDT, alongside multiple communication interfaces such as I2C, SPI, UART, USART, and SMBus. Operates from a 2.7V to 3.6V supply, with an operating temperature range of -40°C to 85°C, and is RoHS compliant.
Frequency25MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs C8051F333-GM technical specifications.
General
Access Time
25us
Package/Case
QFN
Contact Plating
Tin, Matte
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Interface
I2C, SPI, UART, USART, SMBus, 2-Wire
Lead Free
Lead Free
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
4KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Number of Channels
3
Number of I/Os
17
Number of Programmable I/O
17
Number of Timers/Counters
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
91
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT
RAM Size
0.75KB
RoHS Compliant
Yes
Series
C8051F33x
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F333-GM Datasheet
Download the complete datasheet for Silicon Labs C8051F333-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

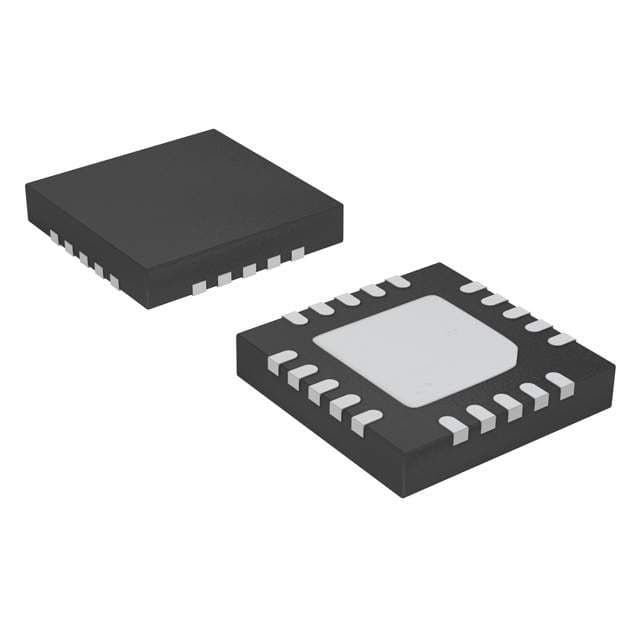

Product Images
