8-bit microcontroller featuring a 100MHz 8051 core, 32KB FLASH memory, and 1.25KB RAM. Offers 39 programmable I/Os, 4 timers/counters, and multiple interfaces including I2C, SPI, UART, USART, EBI/EMI, and SMBus. Operates from 3V to 3.6V with an internal oscillator and includes peripherals like POR, PWM, and WDT. Packaged in a TQFP-48, this RoHS compliant component is suitable for operation between -40°C and 85°C.
Frequency100MHz
PackageTQFP
Quick Jump:
Technical Specifications
Silicon Labs C8051F363-GQ technical specifications.
General
Package/Case
TQFP
Core Architecture
8051
Data Bus Width
8b
Frequency
100MHz
Interface
I2C, SPI, UART, USART, EBI/EMI, SMBus, 2-Wire
Max Frequency
100MHz
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
3V
Number of Channels
6
Number of I/Os
39
Number of Programmable I/O
39
Number of Timers/Counters
4
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT
Radiation Hardening
No
RAM Size
1.25KB
RoHS Compliant
Yes
Series
C8051F36x
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F363-GQ Datasheet
Download the complete datasheet for Silicon Labs C8051F363-GQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

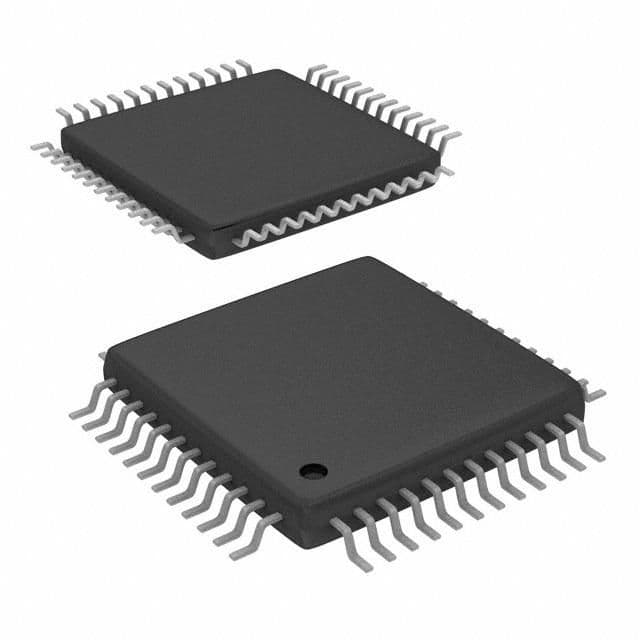

Product Images
