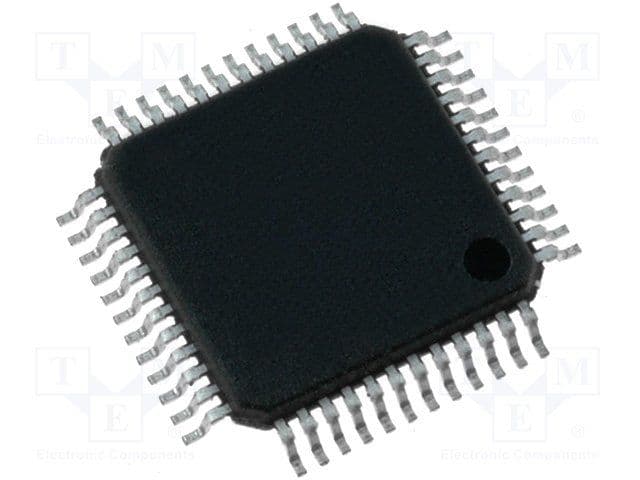

8-Bit Microcontroller (MCU) featuring an 8051 core architecture and operating at up to 48MHz. This CMOS device offers 32KB of FLASH memory and 2.25KB of RAM, with 40 programmable I/O pins. Integrated peripherals include 6 timers/counters, 5 PWM channels, 2 UART channels, 2 I2C channels, 1 SPI channel, and 1 USB channel. The TQFP package has tin contact plating and measures 7mm x 7mm x 1.05mm, supporting a supply voltage range of 1.8V to 3.6V and operating temperatures from -40°C to 85°C. This RoHS compliant component includes brown-out detect/reset, POR, and WDT functionalities.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs C8051F386-GQ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Silicon Labs C8051F386-GQ technical specifications.
| Package/Case | TQFP |
| Contact Plating | Tin |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 48MHz |
| Height | 1.05mm |
| Length | 7mm |
| Max Frequency | 48MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 3.6V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Number of Channels | 5 |
| Number of I/Os | 40 |
| Number of I2C Channels | 2 |
| Number of Programmable I/O | 40 |
| Number of PWM Channels | 5 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 6 |
| Number of UART Channels | 2 |
| Number of USB Channels | 1 |
| Oscillator Type | Internal |
| Packaging | Tray |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| RAM Size | 2.25KB |
| RoHS Compliant | Yes |
| Series | C8051F38x |
| Width | 7mm |
| RoHS | Compliant |
