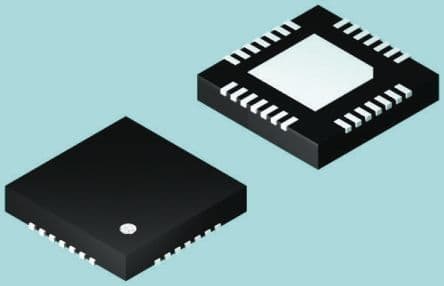

8-Bit Microcontroller (MCU) featuring a 50MHz 8051 core architecture. This CMOS device offers 32KB of FLASH memory and 2.25KB of RAM, with 20 programmable I/Os. Integrated peripherals include I2C, SPI, UART, USART, SMBus, and 6 PWM channels, alongside 4 timers/counters and 24 ADC channels. Operating from 2V to 5.25V, it supports an extended temperature range of -40°C to 85°C and comes in a RoHS compliant QFN-28 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Silicon Labs C8051F411-GM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Access Time | 50us |
| Package/Case | QFN |
| Contact Plating | Tin |
| Core Architecture | 8051 |
| Data Bus Width | 8b |
| Frequency | 50MHz |
| Height | 1mm |
| Interface | I2C, SPI, UART, USART, SMBus, 2-Wire |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 50MHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.25V |
| Memory Size | 32KB |
| Memory Type | FLASH, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2V |
| Number of ADC Channels | 24 |
| Number of Channels | 6 |
| Number of I/Os | 20 |
| Number of Programmable I/O | 20 |
| Number of PWM Channels | 6 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 4 |
| Number of UART Channels | 1 |
| Oscillator Type | Internal |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor |
| Radiation Hardening | No |
| RAM Size | 2.25KB |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | C8051F41x |
| Watchdog Timer | Yes |
| Width | 5mm |
| RoHS | Compliant |
